EC430 Telescopic Loader

EC430 is a telescopic loader supplied for reliable day-to-day work, practical operation and export-ready project support.

Request a Quote
View Product Range
EC430 Telescopic Loader

EC430 Equipment Overview

EC430 is a telescopic loader supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.

Product Gallery

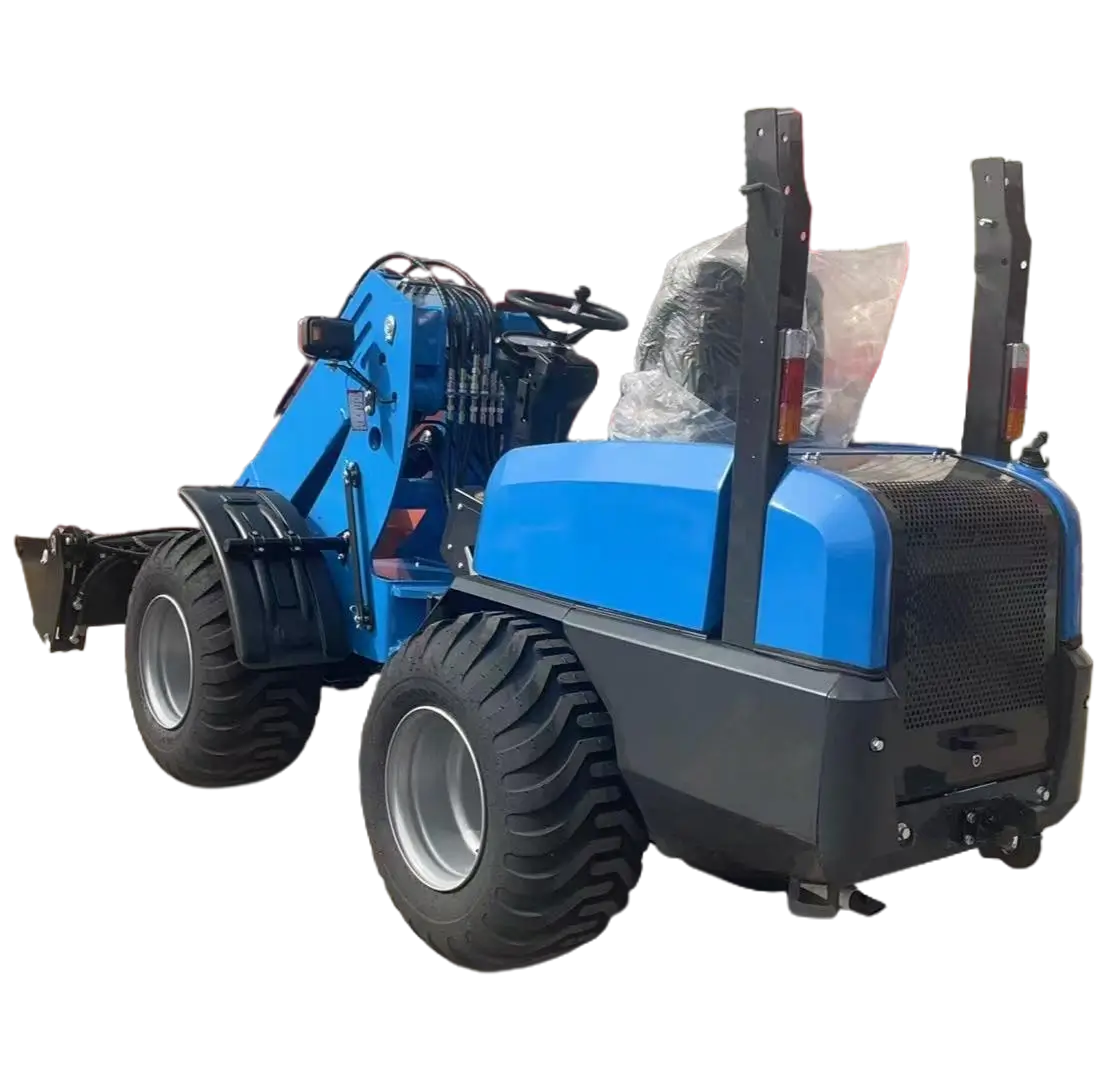

EC430 Telescopic Loader view 2

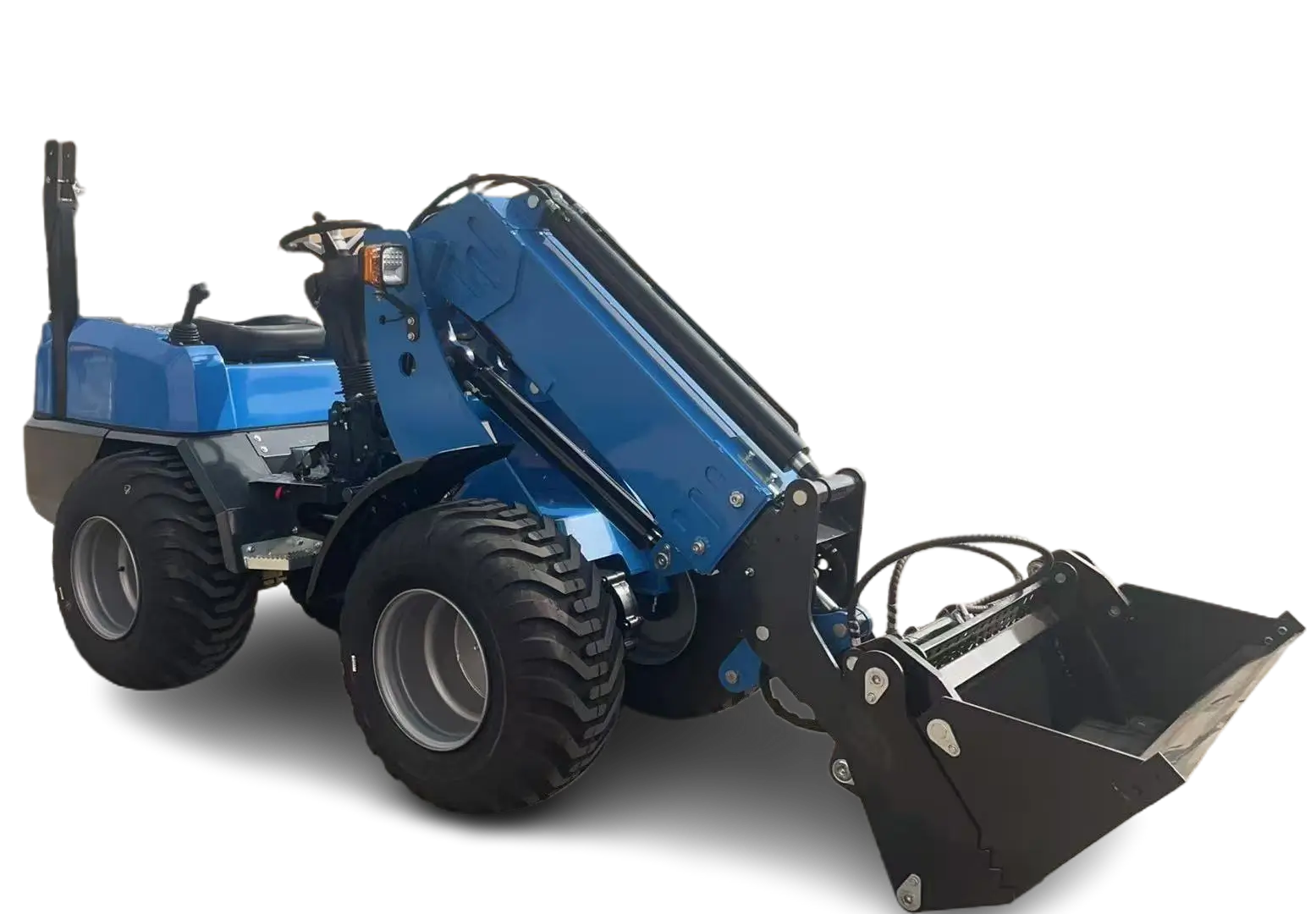

EC430 Telescopic Loader view 3

Technical Information

Product Overview

EC430 is a mini telescopic loader configured for compact material handling, yard work and jobsites that require articulated steering and extended boom reach.

Key Details

  • 800kg maximum load on the main arm and 450kg with the small arm extended.
  • 45 deg articulated turning angle with 30% climbing gradient.
  • 30L hydraulic oil tank and 30L diesel oil tank capacity.
Performance ParametersMaximum Load of Main Arm800kg
Maximum Load with Small Arm Extended450kg
Net Weight of Vehicle Body1800kg
Articulated Turning Angle45 deg
Climbing Gradient30%
Hydraulic Oil Tank Capacity30L
Diesel Oil Tank Capacity30L
Maximum Travel Speed12Km/h
Size Parameters (refer to 10.0/75-15.3 tire measurement)Total Length of Vehicle Body4430mm
Wheel Spacing1550mm
Distance from Rear Wheels to Rear of Vehicle1148mm
Bucket Retraction Angle at Lowest Point51 deg
Maximum Unloading Height Before Extension2215mm
Maximum Unloading Height After Extension2825mm
Bucket Retraction Height at Highest Point4035mm
Bucket Retraction Angle at Highest Point51 deg
Safe Unloading Distance After Extension1350mm
Total Width of Wheels1046mm
Unloading Angle at Highest Point31 deg
Safe Unloading Distance Before Extension830mm
Minimum Ground Clearance242mm
Digging Depth120mm
