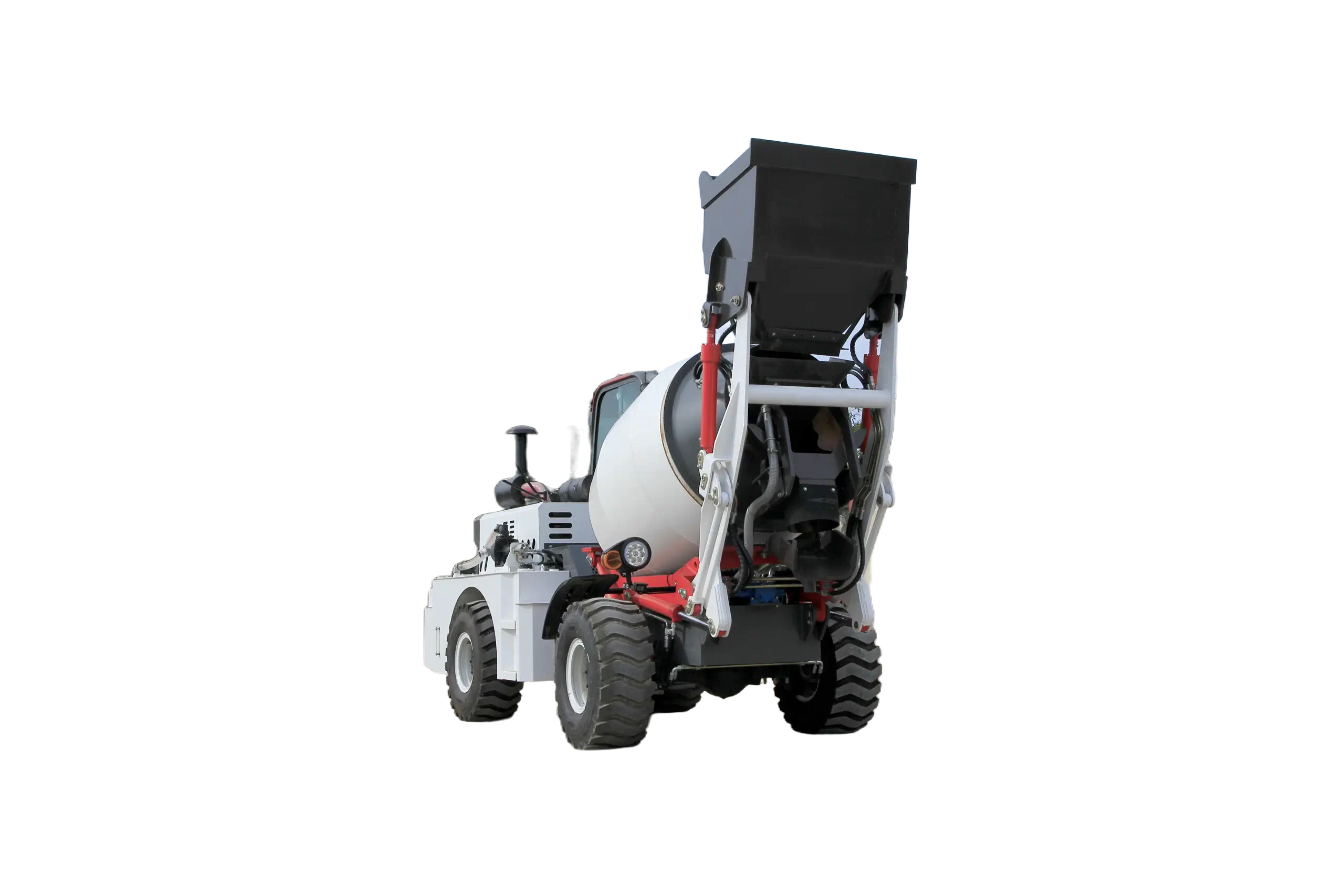

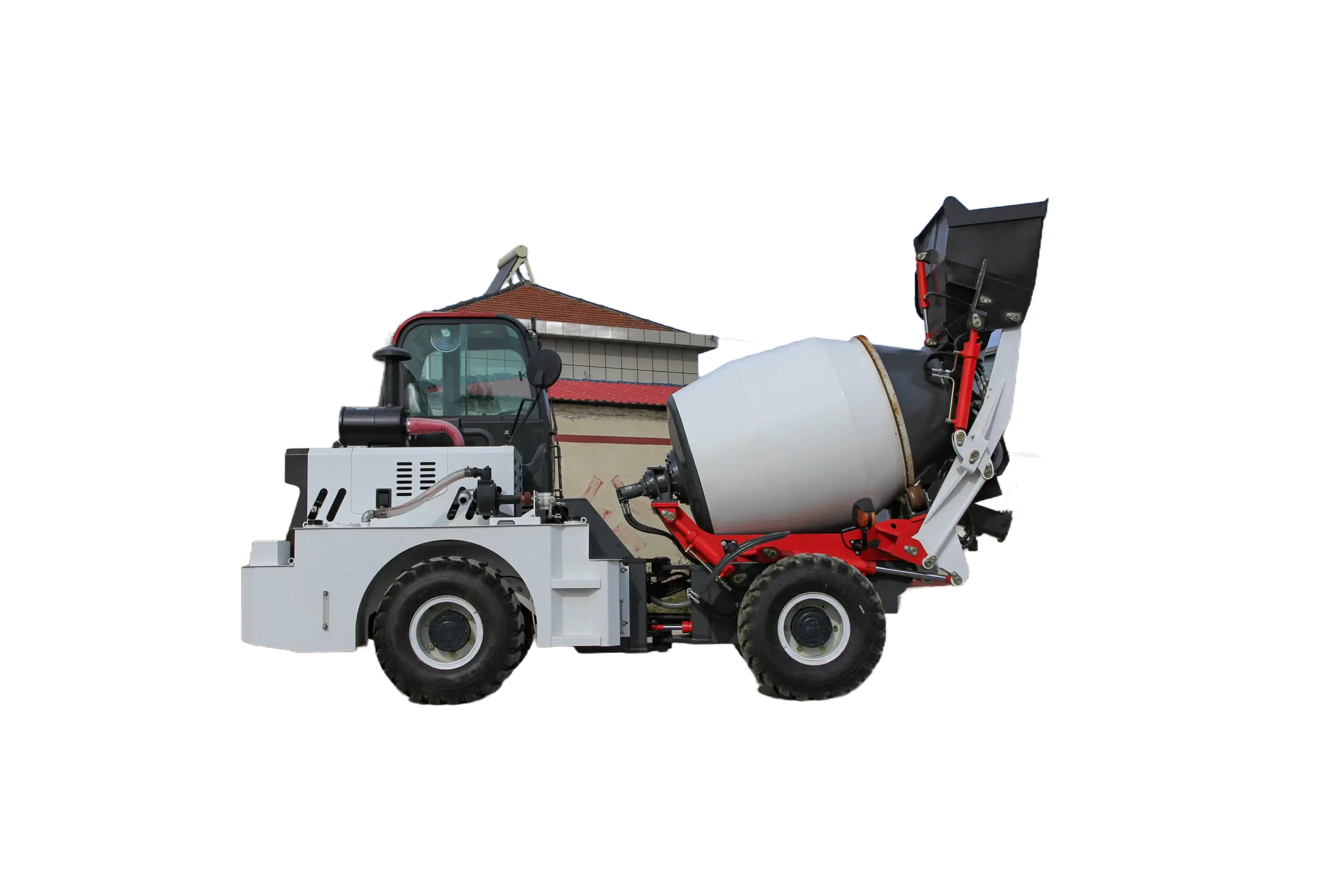

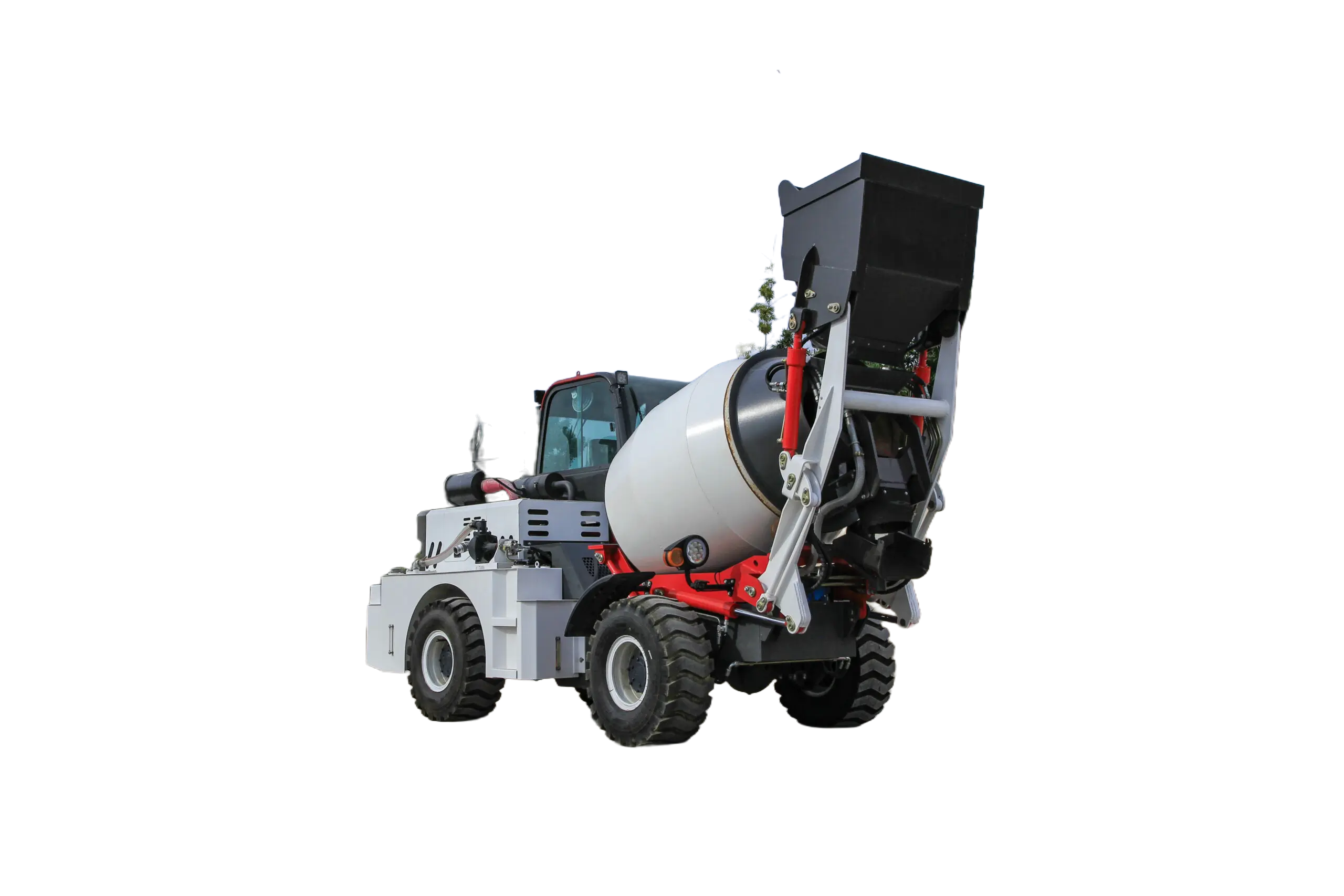

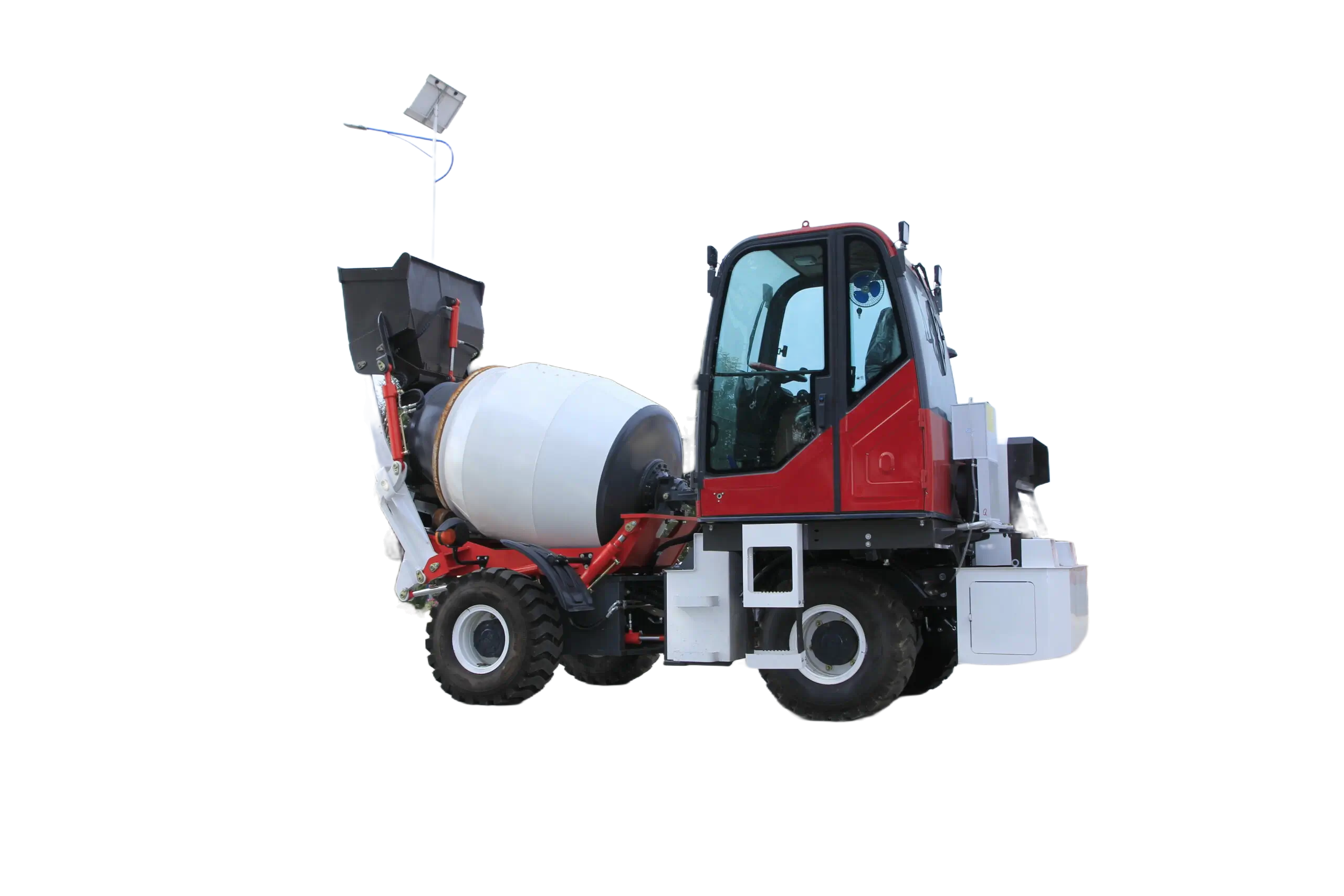

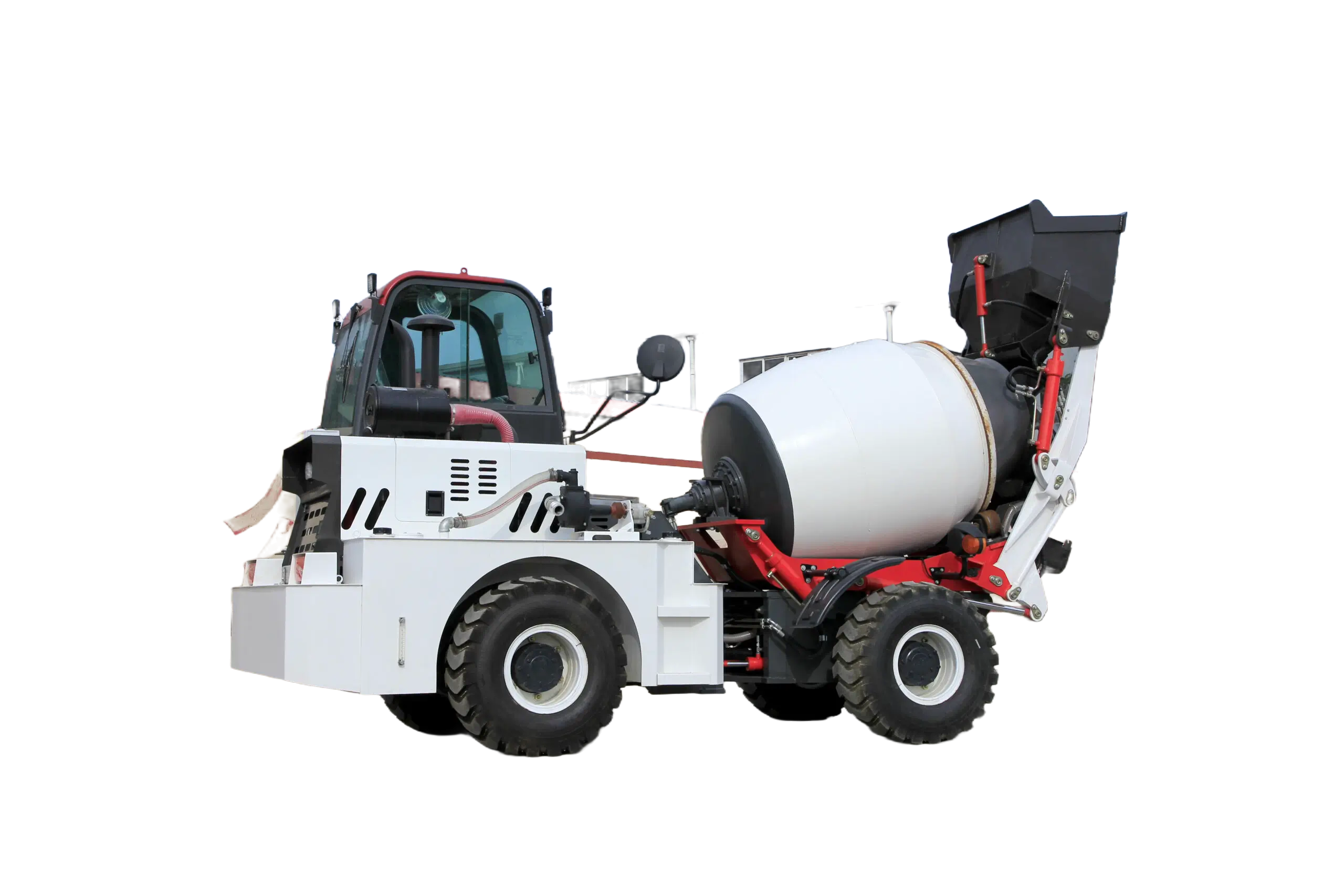

Model1.5 m3 self-loading concrete mixer truck

Vehicle Size5,050 x 2,350 x 3,500 mm (two-way driving); 6,400 x 2,350 x 2,700 mm (drop arm)

Alternative Vehicle Size5,250 x 2,350 x 3,300 mm (one-way driving); 6,650 x 2,350 x 2,700 mm (drop arm)

Wheelbase2,180 mm

Track Width1,490 mm

Overall Weight5,500 kg

EngineYN26GBZ

Power55 kW

Gearbox265 integrated gearbox

Drive Axle1.8T wheel-side reduction axle

Tires20.5/70-16

Bucket Capacity0.35 m3

Mixing Capacity1.0 m3

Reduction Ratio1:24

Mixing Speed>= 15 rpm

ReducerChina-made

Running Speed35 km/h

Traction Type4 x 4

Water Tank Capacity300 L

Diesel Tank Capacity90 L

Hydraulic Tank Capacity120 + 18 L
