MEGA Product Detail
MG20D Site Dumper
MG20D is a site dumper supplied for reliable day-to-day work, practical operation and export-ready project support.
MG20D Equipment Overview
MG20D is a site dumper supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.

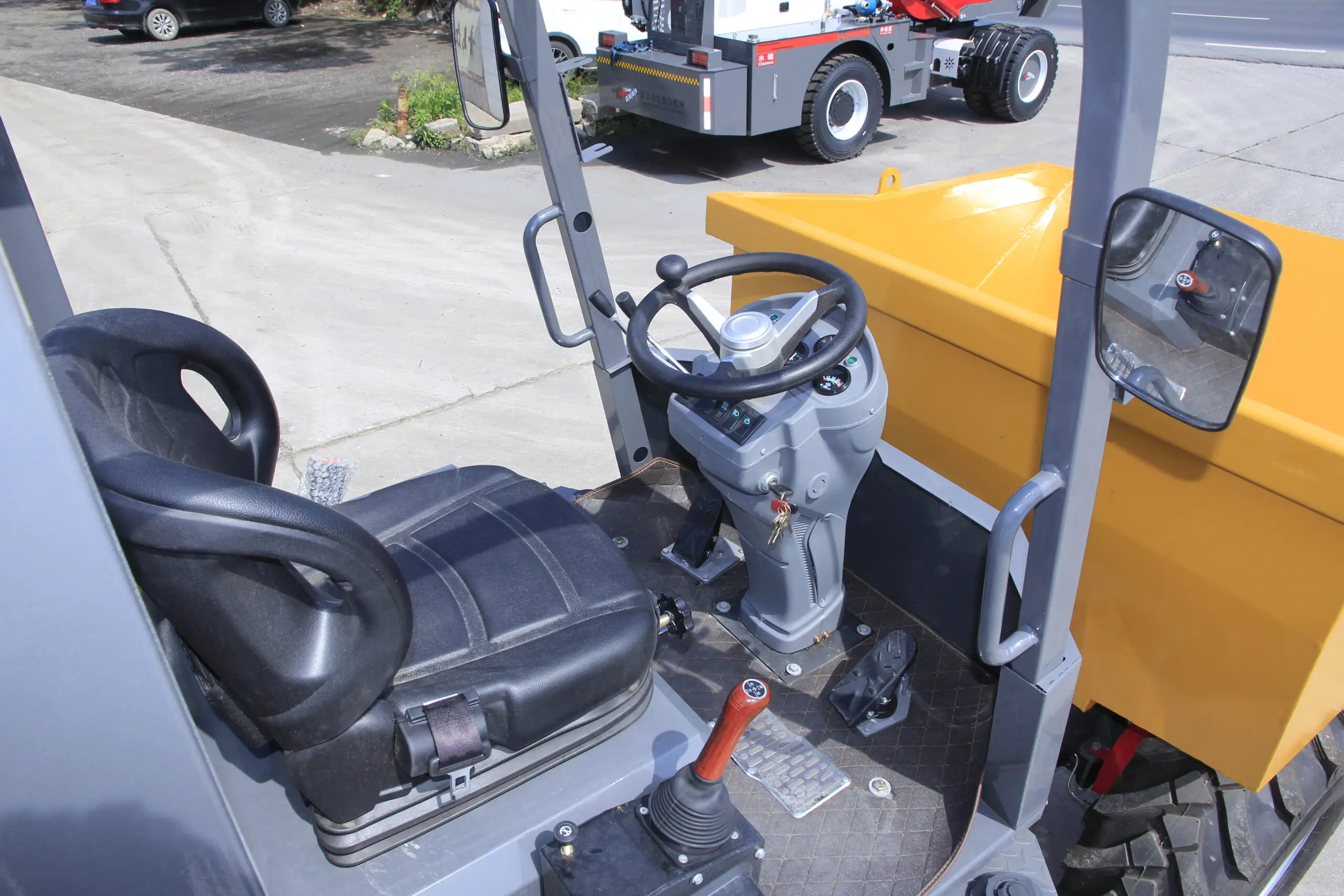

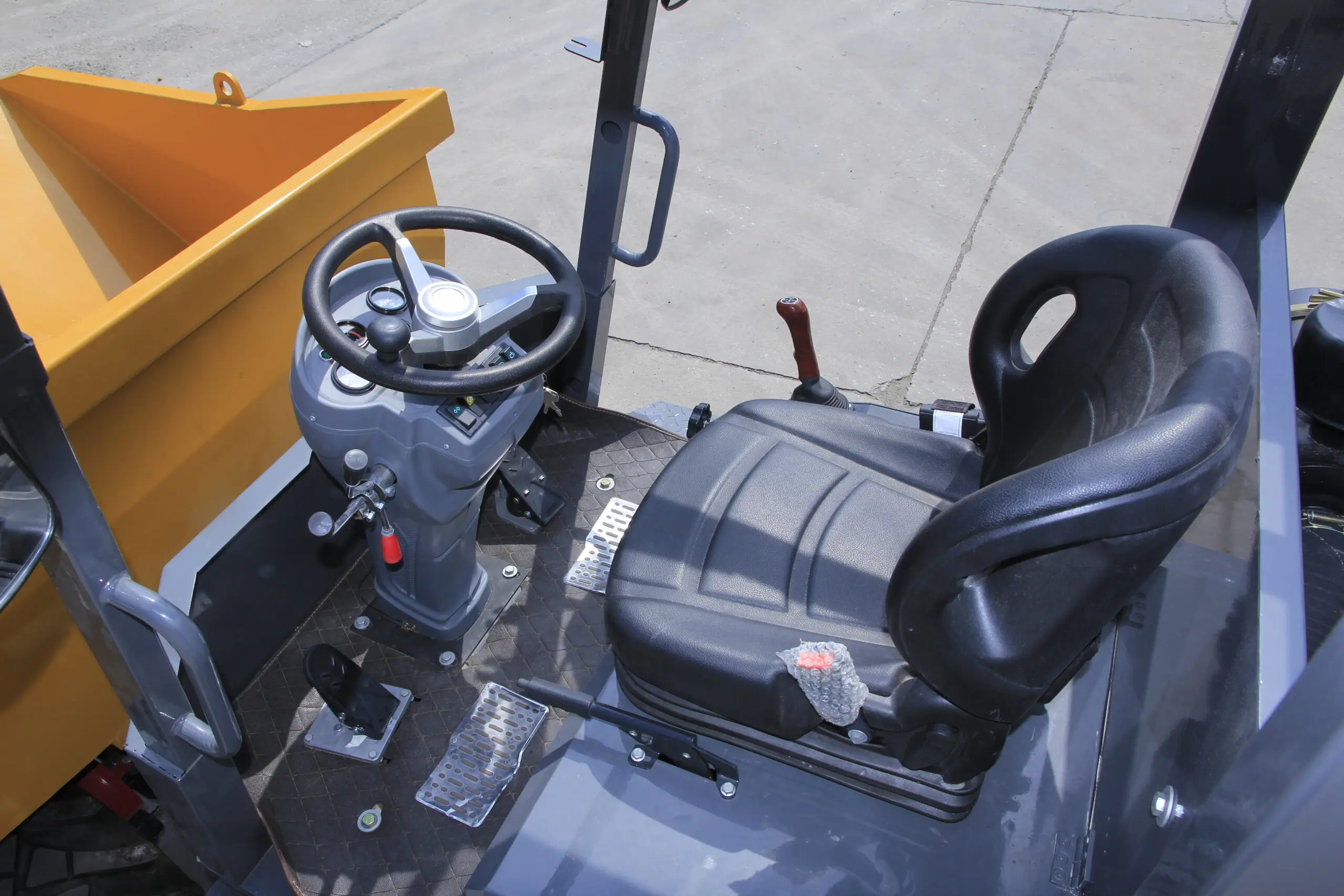

Product Gallery
Technical Information
Vehicle Size3,380 x 1,630 x 2,560 mm
Wheelbase1,800 mm
Total Weight2,330 kg
Drive TypeFour-wheel drive
Tires20.5/70-16
Drive AxleSmall hub reduction axle
EngineYN25GB
Engine Power37 kW
Gearbox265 high/low-speed gearbox
Travel Speed30 km/h
Maximum Gradeability<= 30 degrees
Minimum Turning Radius4,500 mm
Minimum Ground Clearance250 mm
Bucket Capacity1 m3
Tipping Bucket Rotation Angle+/- 90 degrees (optional)
Rated Load2,000 kg
Discuss Your MG20D Requirement
Send your application and target configuration to receive a current export quotation.
