MG30D Site Dumper
MG30D is a site dumper supplied for reliable day-to-day work, practical operation and export-ready project support.
MG30D Equipment Overview
MG30D is a site dumper supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.

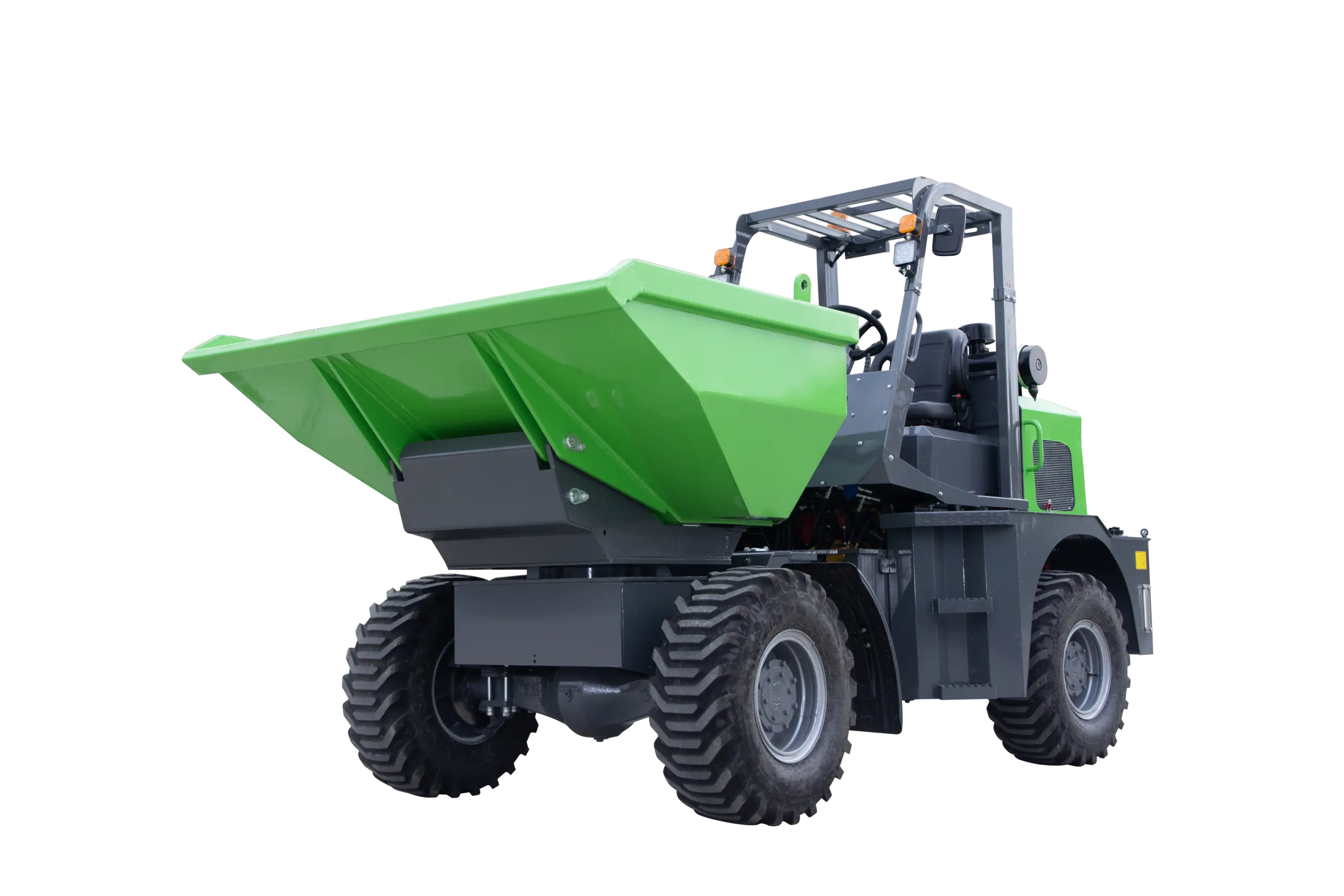

Product Gallery
Technical Information
Vehicle Size4,900 x 1,850 x 2,700 mm
Wheelbase2,500 mm
Total Weight3,300 kg
Drive TypeFour-wheel drive
Tires20.5/70-16
Drive AxleSmall hub reduction axle
EngineYN25GB
Engine Power37 kW
Gearbox265 high/low-speed gearbox
Travel Speed30 km/h
Maximum Gradeability<= 30 degrees
Minimum Turning Radius4,500 mm
Minimum Ground Clearance250 mm
Bucket Capacity1.6 m3
Tipping Bucket Rotation Angle+/- 90 degrees (optional)
Rated Load3,000 kg
Discuss Your MG30D Requirement
Send your application and target configuration to receive a current export quotation.
