MG3501 3.5 Ton All-Terrain Forklift

Four-wheel-drive outdoor forklift with a 3,500 kg rated load, configurable lifting height and strong jobsite mobility.

Request a QuoteView Forklift Range
MG3501 3.5 ton all-terrain forklift
Overview

Built for Rough Ground Material Handling

The MG3501 combines a compact chassis, high ground clearance and four-wheel drive for dependable pallet handling, yard logistics and construction-site work.

Technical Specifications

MG3501 All-Terrain Forklift Parameters

Machine Dimensions and Performance

ParameterSpecification
Overall weight4,500 kg
Dimensions (L x W x H)3,400 x 1,800 x 2,250 mm
Front axleSmall hub reduction axle
Lifting height3,000 to 6,000 mm
Rated load3,500 kg
Emission standardChina IV / Euro III
Engine power36.8 kW
Gantry height2,250 to 2,930 mm
Tires23.5/70-16
Minimum turning radius2,200 mm
Drive mode4 x 4 wheel drive
Maximum gradeability≤ 25 degrees
Wheelbase2,130 mm
Gantry ground clearance240 mm
Load-center distance500 mm
Wheelbase ground clearance300 mm

Optional Attachments

Optional working attachments can be specified to match handling tasks, including buckets, clamps, forks and boom tools.

Product Gallery

MG3501 Equipment Views

MG3501 3.5 ton all-terrain forklift view 1

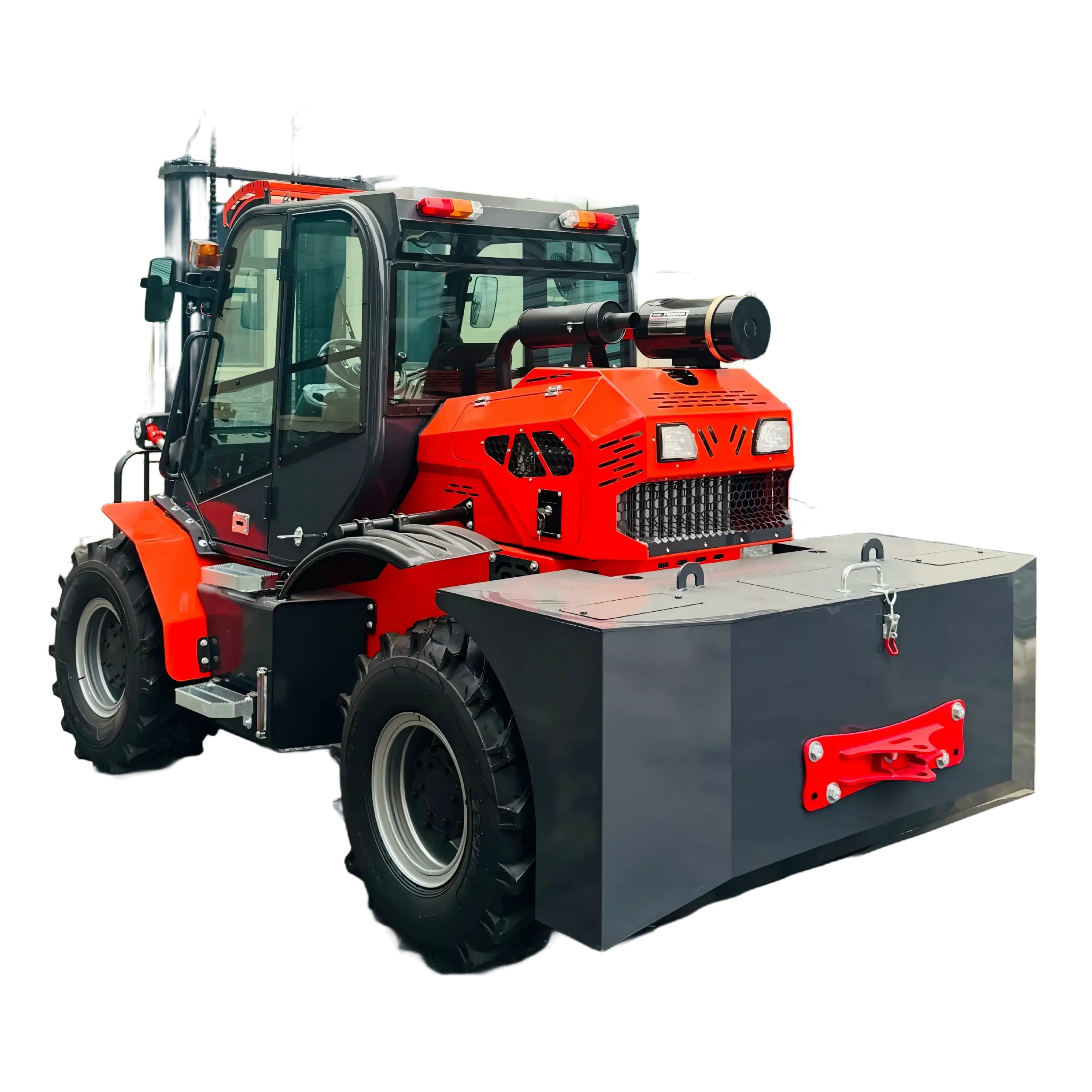

MG3501 3.5 ton all-terrain forklift view 2

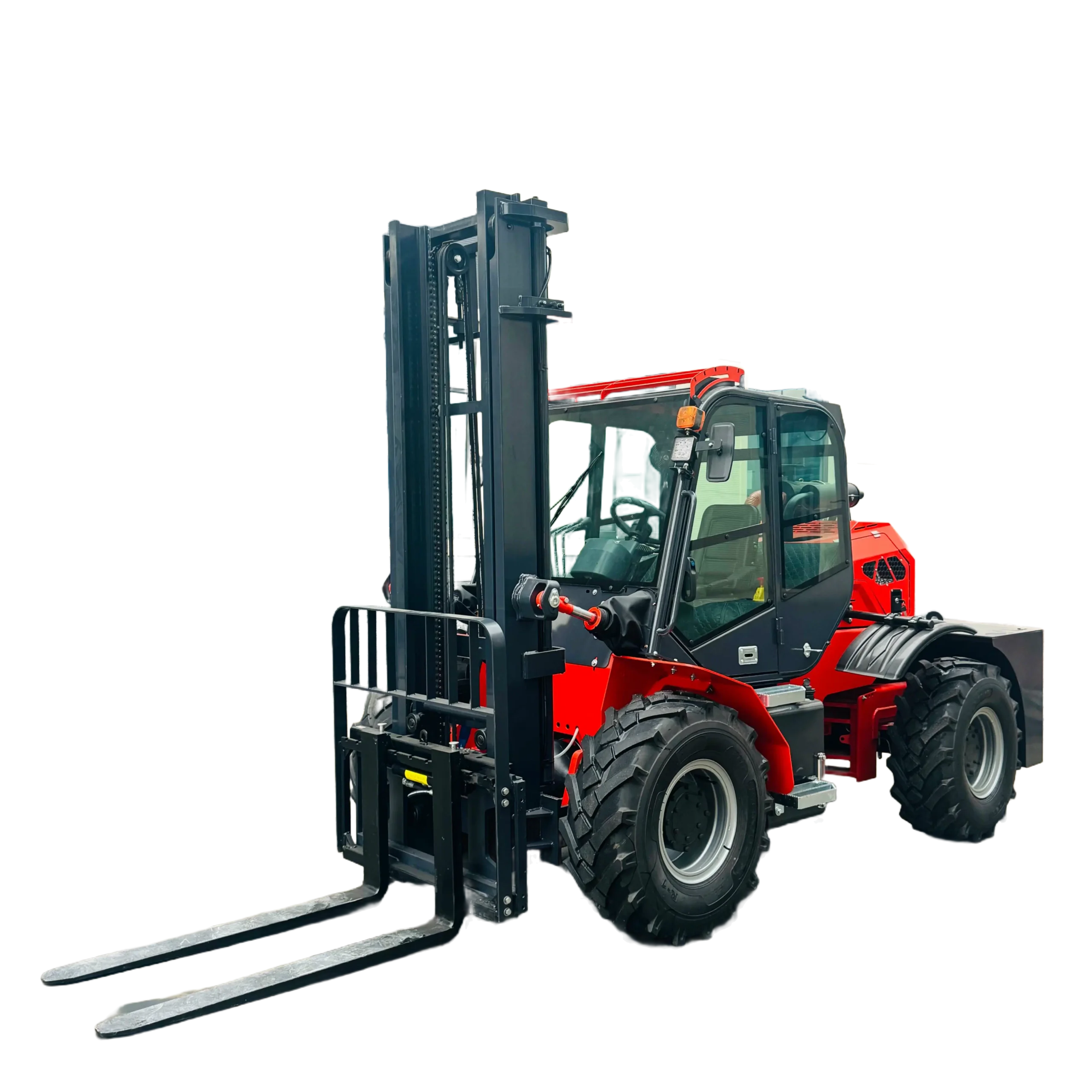

MG3501 3.5 ton all-terrain forklift view 3

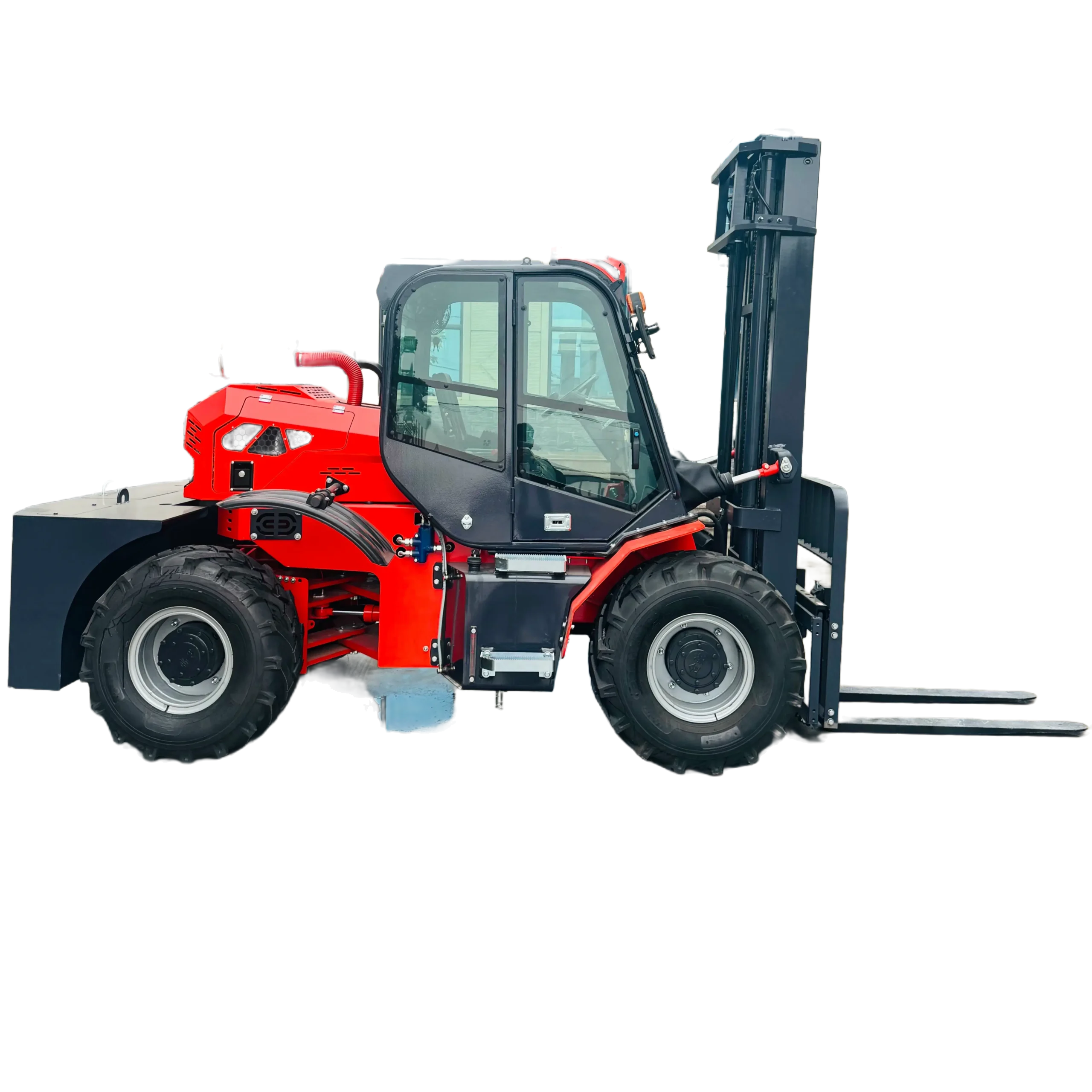

MG3501 3.5 ton all-terrain forklift view 4

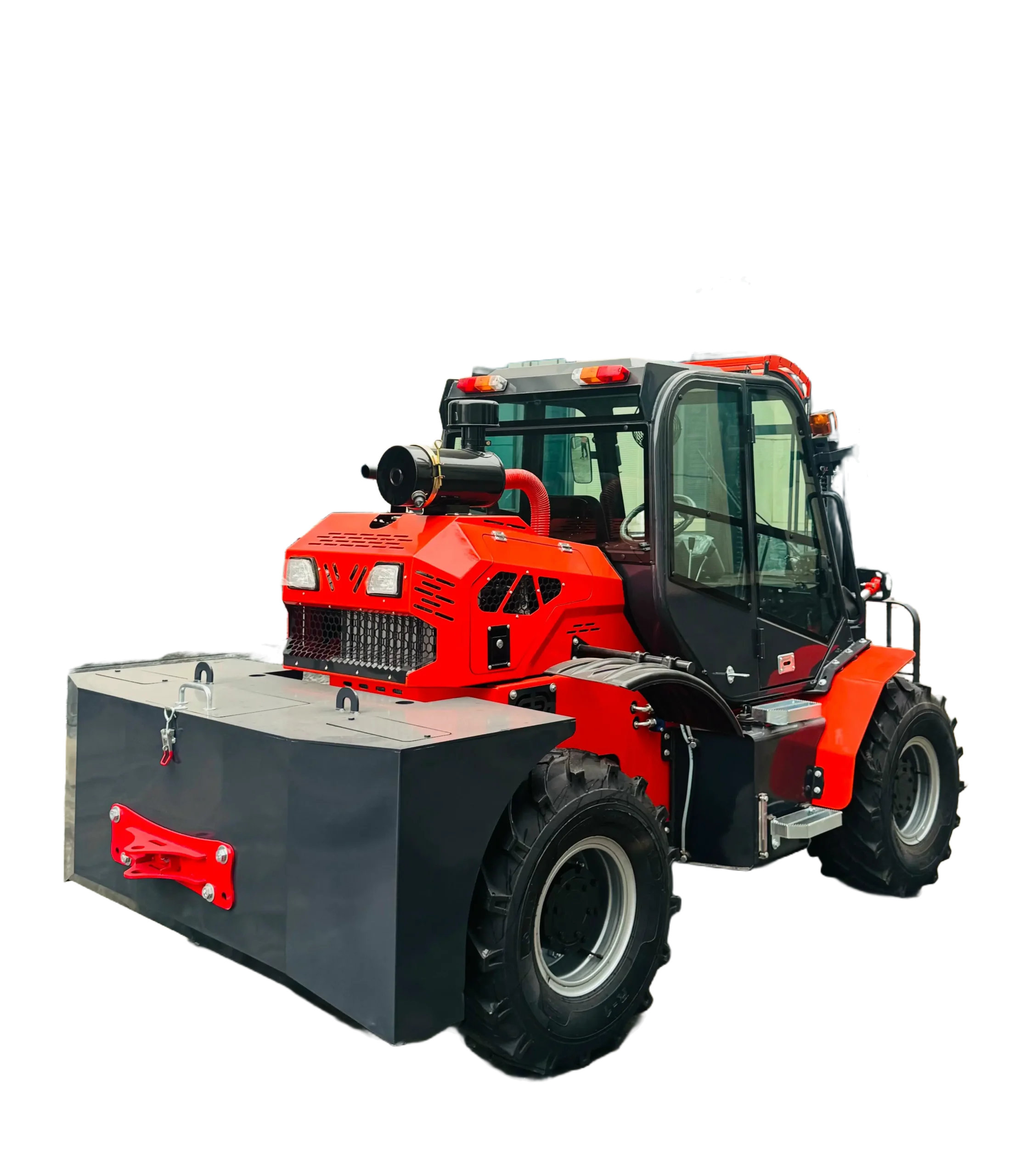

MG3501 3.5 ton all-terrain forklift view 5

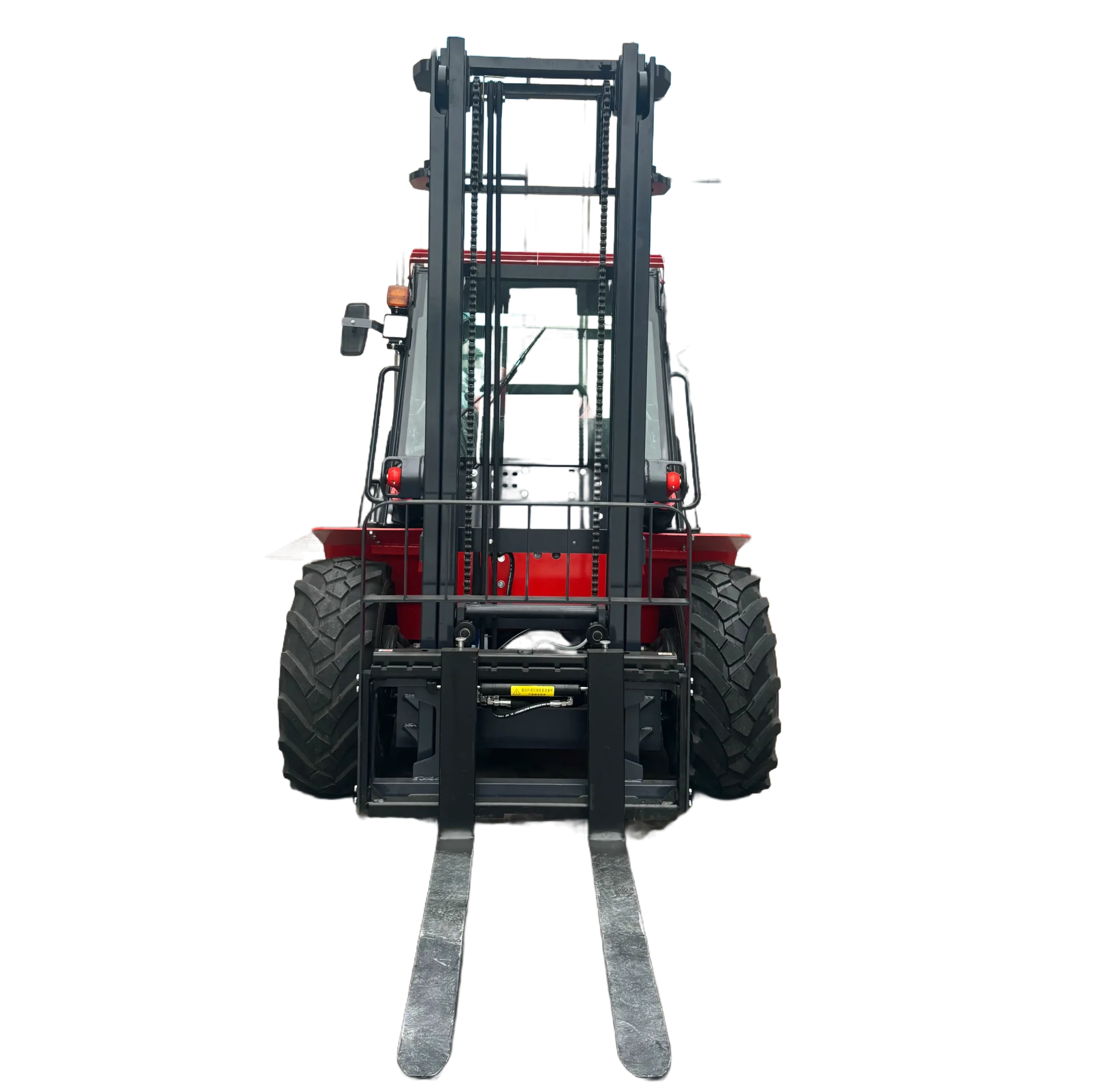

MG3501 3.5 ton all-terrain forklift view 6

Discuss Your MG3501 Requirement

Tell us your handling application, required lifting height and destination port. MEGA can provide the current configuration and export quotation.
