MG4000A Self-Loading Concrete Mixer Truck

MG4000A is a self-loading concrete mixer truck supplied for reliable day-to-day work, practical operation and export-ready project support.

Request a Quote
View Product Range
MG4000A Self-Loading Concrete Mixer Truck

MG4000A Equipment Overview

MG4000A is a self-loading concrete mixer truck supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.

Product Gallery

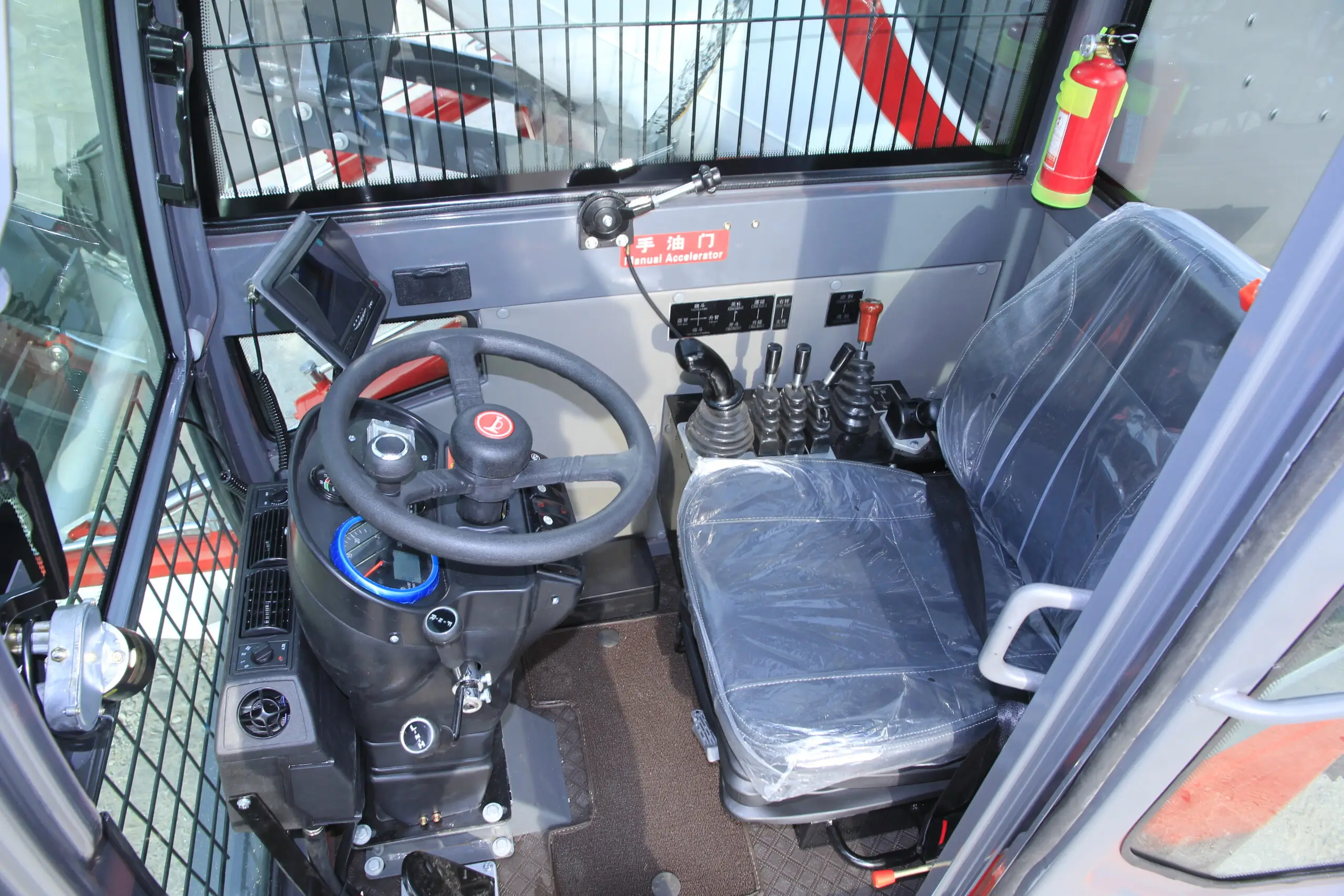

MG4000A Self-Loading Concrete Mixer Truck view 2
MG4000A Self-Loading Concrete Mixer Truck view 3
MG4000A Self-Loading Concrete Mixer Truck view 4
MG4000A Self-Loading Concrete Mixer Truck view 5
MG4000A Self-Loading Concrete Mixer Truck view 6

Technical Information

Model4.5 m3 self-loading concrete mixer truck

Vehicle Size6,700 x 3,000 x 4,220 mm (lifting arm); 7,900 x 3,000 x 3,070 mm (drop arm)

Wheelbase3,200 mm

Track Width1,710 mm

Overall Weight8,500 kg

EngineYCD4J22T-115

Power85 kW

Gearbox280 separate gearbox

Drive Axle2.5T wheel-side reduction axle

Tires16/70-20

Mixing Capacity4.5 m3

Reduction Ratio1:28

Mixing Speed>= 15 rpm

ReducerChina-made

Running Speed35 km/h

Traction Type4 x 4

Water Tank Capacity910 L

Diesel Tank Capacity180 L

Hydraulic Tank Capacity150 + 26 L
