MEGA Product Detail

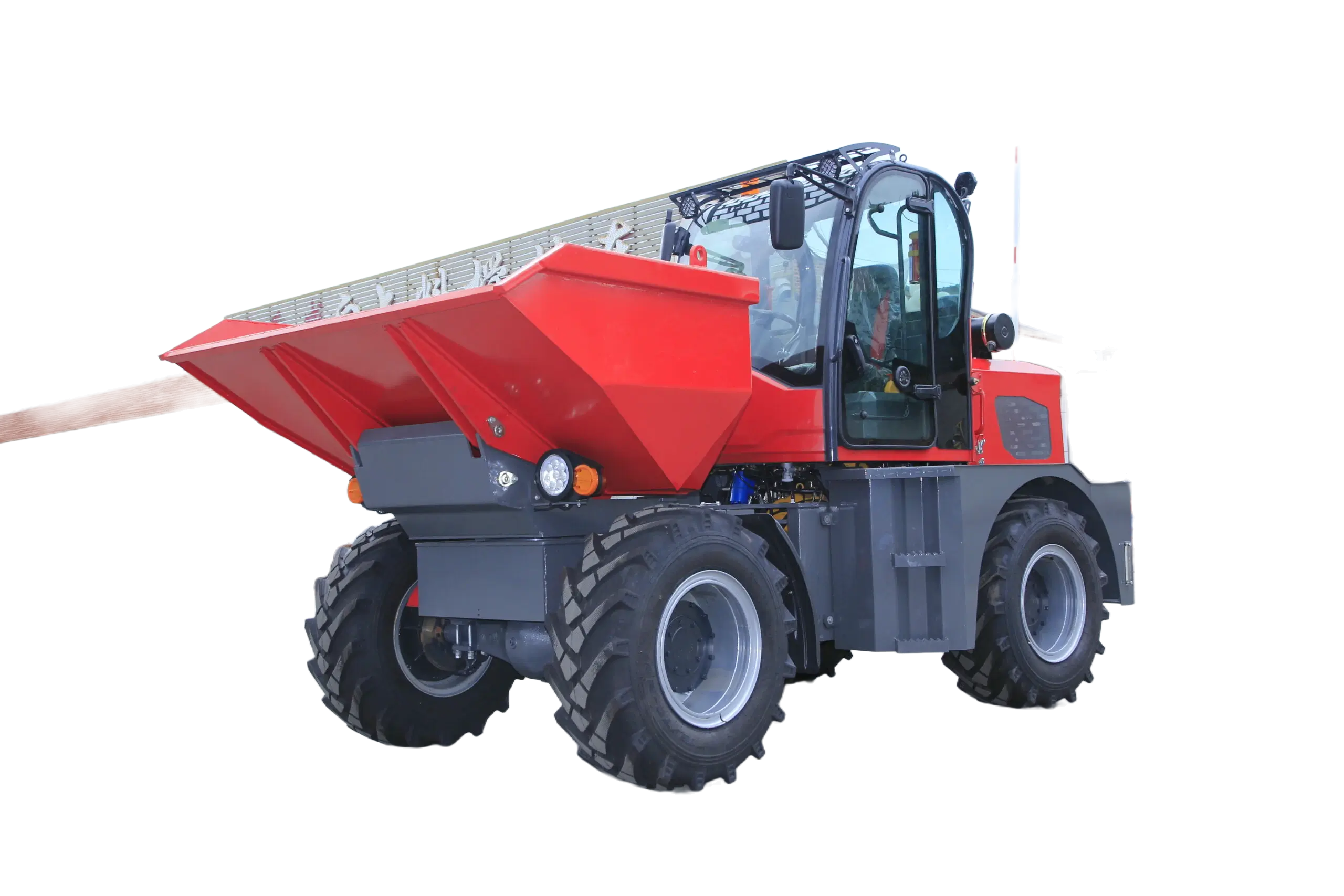

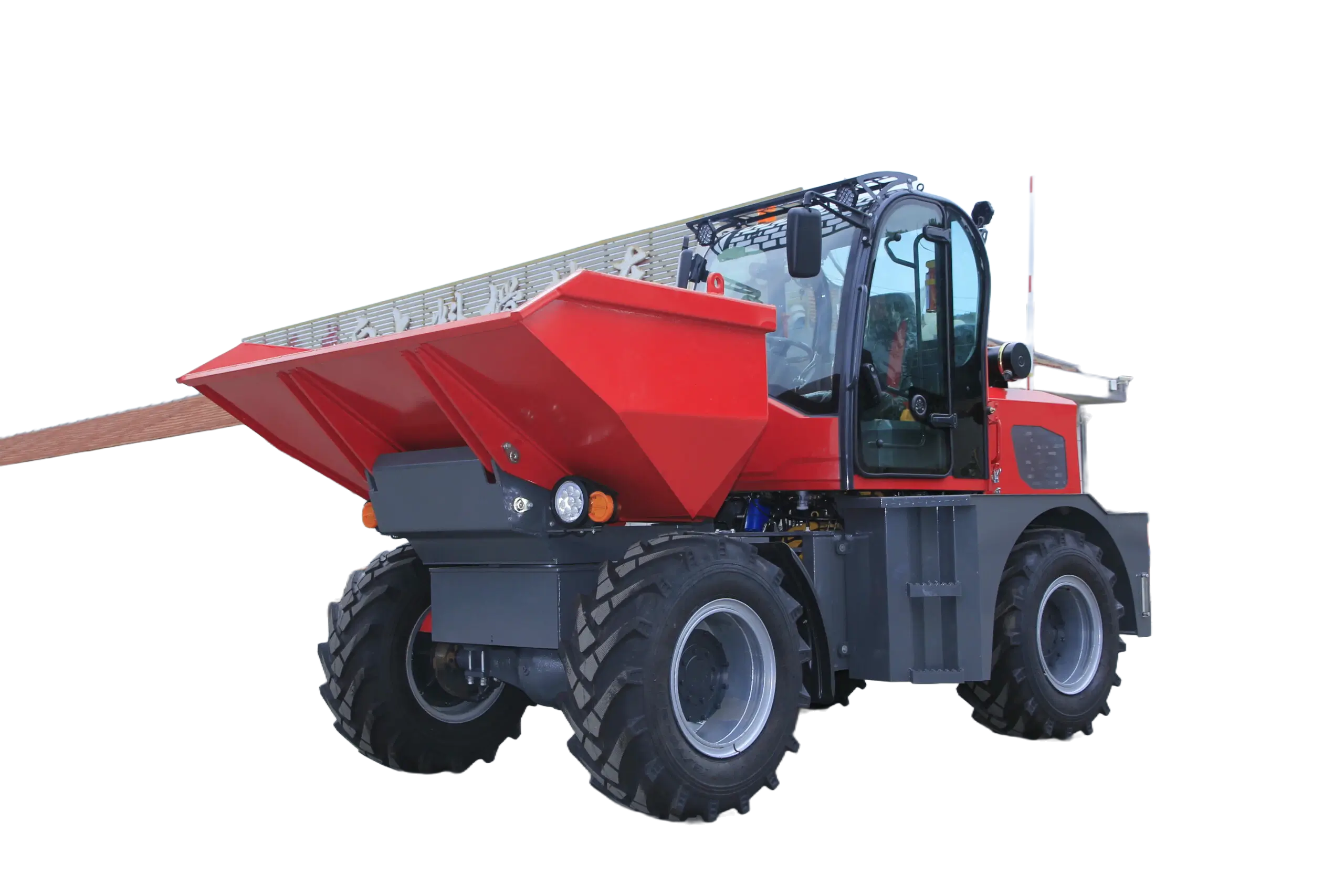

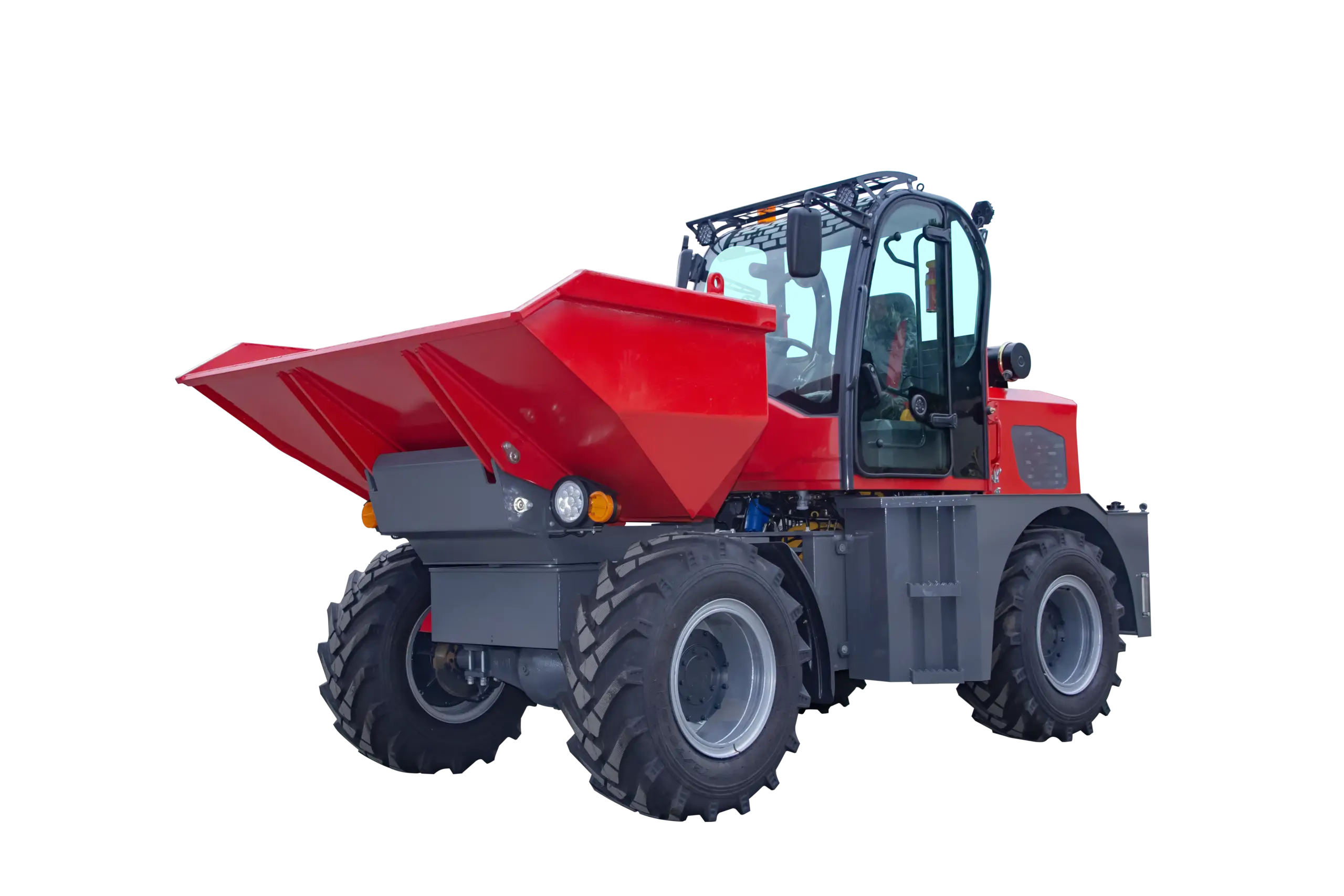

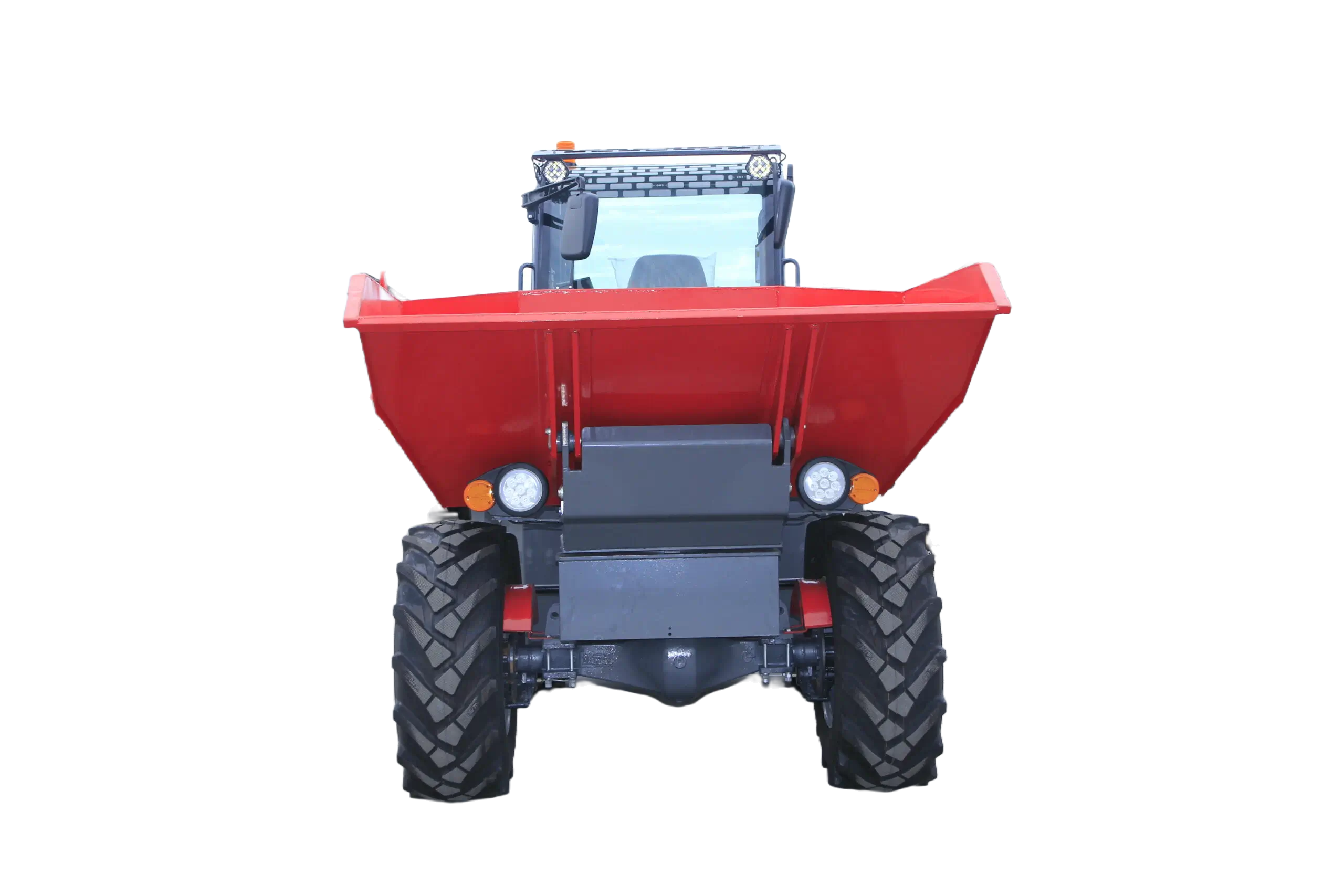

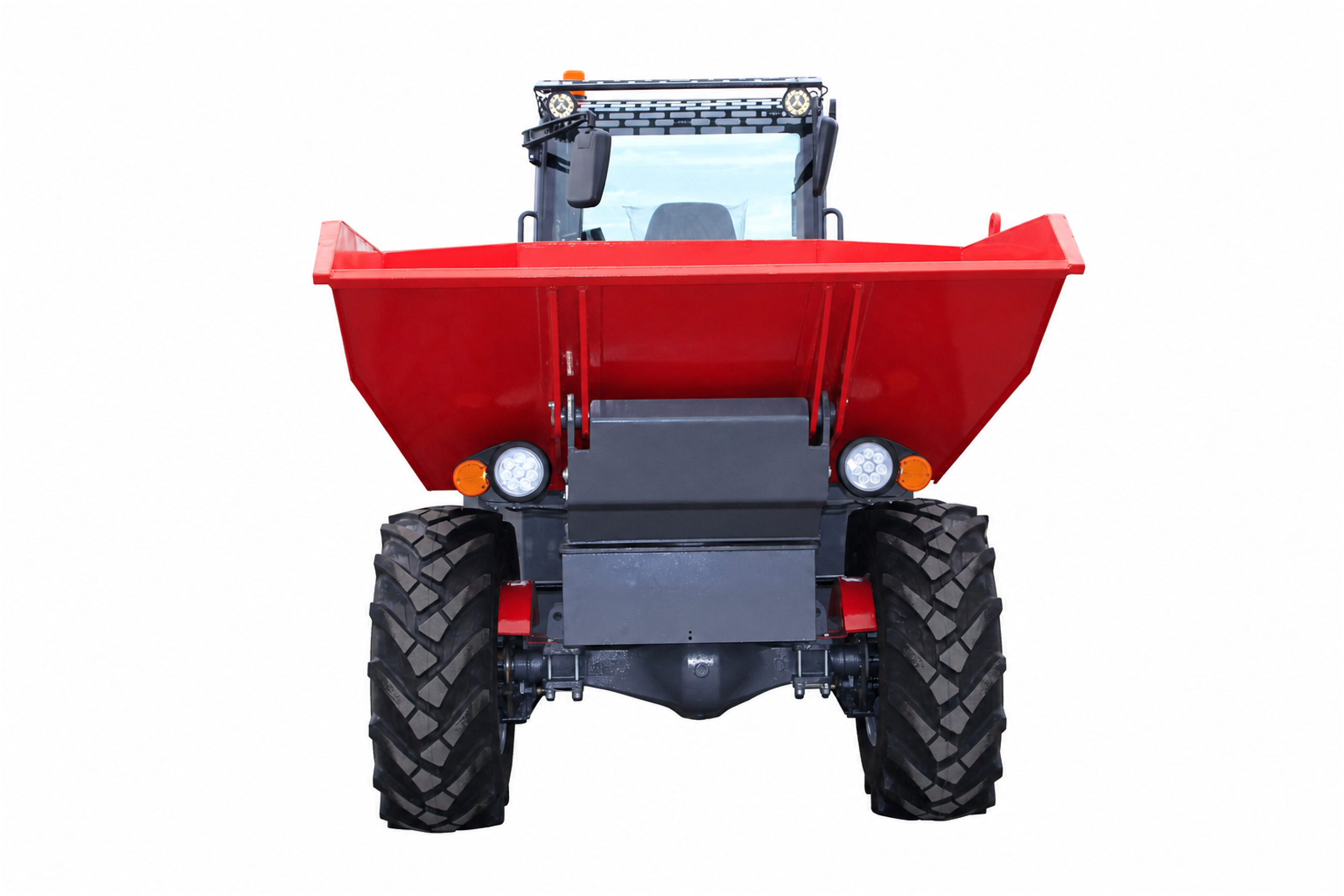

MG50D Site Dumper
MG50D is a site dumper supplied for reliable day-to-day work, practical operation and export-ready project support.
MG50D Equipment Overview
MG50D is a site dumper supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.
Product Gallery
Technical Information
Vehicle Size5,100 x 1,900 x 2,520 mm
Wheelbase2,560 mm
Total Weight3,500 kg
Drive TypeFour-wheel drive
Tires16/70-20
Drive AxleIntermediate wheel-side axle
EngineYN38GBZ
Engine Power76 kW
Gearbox265 high/low-speed gearbox
Travel Speed30 km/h
Maximum Gradeability<= 30 degrees
Minimum Turning Radius4,850 mm
Minimum Ground Clearance270 mm
Bucket Capacity2.5 m3
Tipping Bucket Rotation Angle+/- 90 degrees (optional)
Rated Load5,000 kg
Discuss Your MG50D Requirement
Send your application and target configuration to receive a current export quotation.
