LAIZHOU MEGA DEVELOPMENT CO., LTD Product Detail
MG910H Wheel Loader
MG910H is a wheel loader supplied for reliable day-to-day work, practical operation and export-ready project support.
MG910H Equipment Overview
MG910H is a wheel loader supplied for reliable day-to-day work, practical operation and export-ready project support. Contact LAIZHOU MEGA DEVELOPMENT CO., LTD with your required configuration, operating conditions and destination port for current technical information.
Product Gallery
Technical Information
Product Overview
MG910H wheel loader uses the 1.0 ton compact wheel-loader source specification, with articulated chassis, 4×4 drive and hydraulic articulated steering.
Key Details
- Powerful breakout force helps shorten working time.
- Long dumping distance and high raising weight are listed in the source document.
| Bucket | Rated Load | 1000 Kg |
|---|---|---|
| Bucket Capacity | 0.4 M3 | |
| Bucket Width | 1400 mm | |
| Raising Height | 2800mm | |
| Dumping Height | 2300 mm | |
| Dumping Reach | 750 mm | |

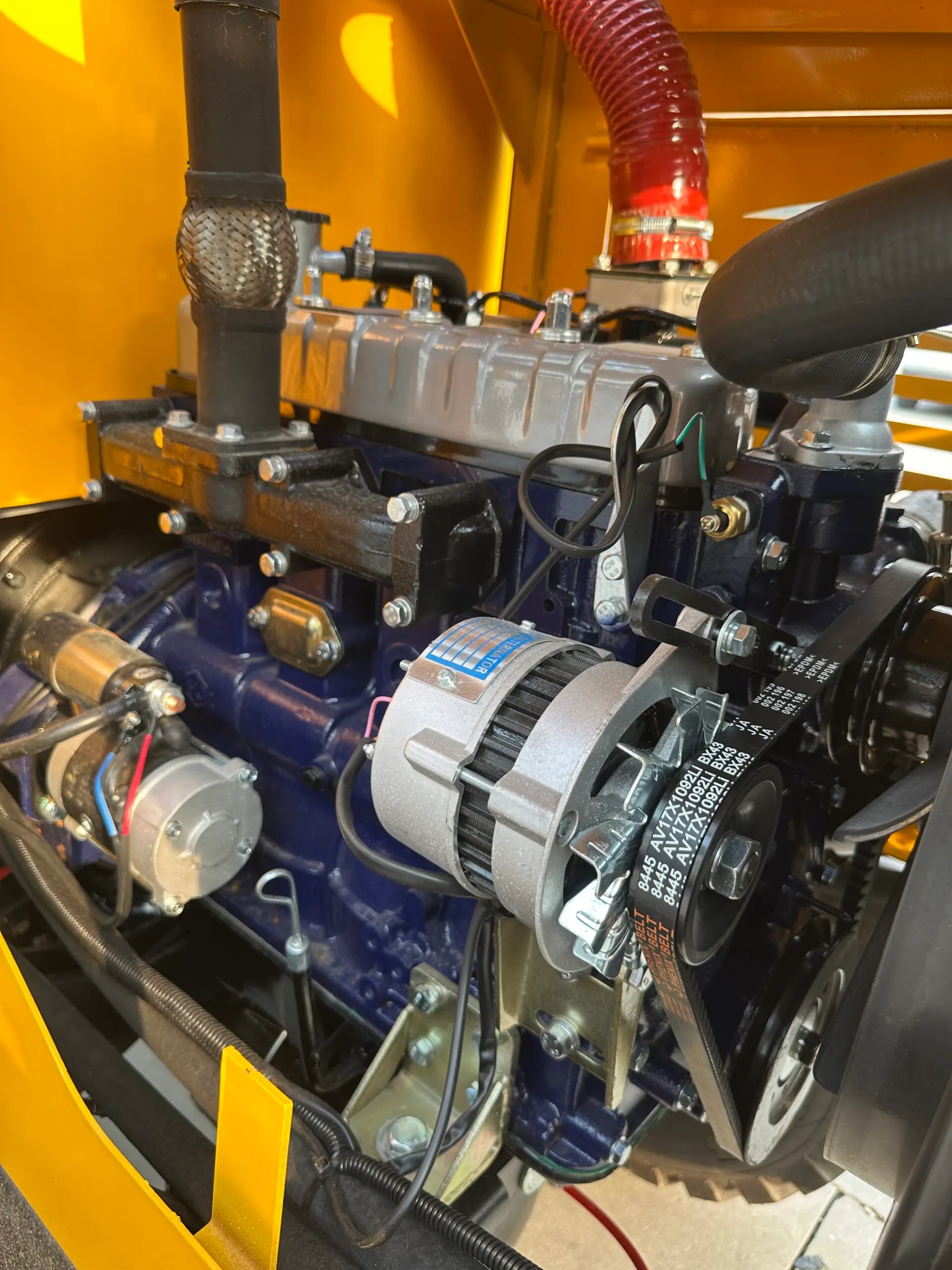

| Engine | Model | HJ 490Y 4-Cylinder, In-line, Water-cooled; Power: 45 kW at 2400rpm Diesel Engine Euro 2 |
| Rated Power / Rated Speed | 45 KW / 61.2 HP | |
| Emission Standard | Euro II | |
| Chassis | Structure | Articulated chassis |
| Articulation Angle | 35 degree | |
| Transmission | Manual, 2F+2R | |
| Driving and Steering | 4-Wheel drive (4×4), hydraulic articulated steering | |
| Wheelbase | 1300 mm | |
| Tread | 2000 mm | |
| Axles | Isuzu driving axle | |
| Torque Converter | Mechanical | |
| Brake | Oil brake | |
| Tyre Size | 20.5-70/16 | |

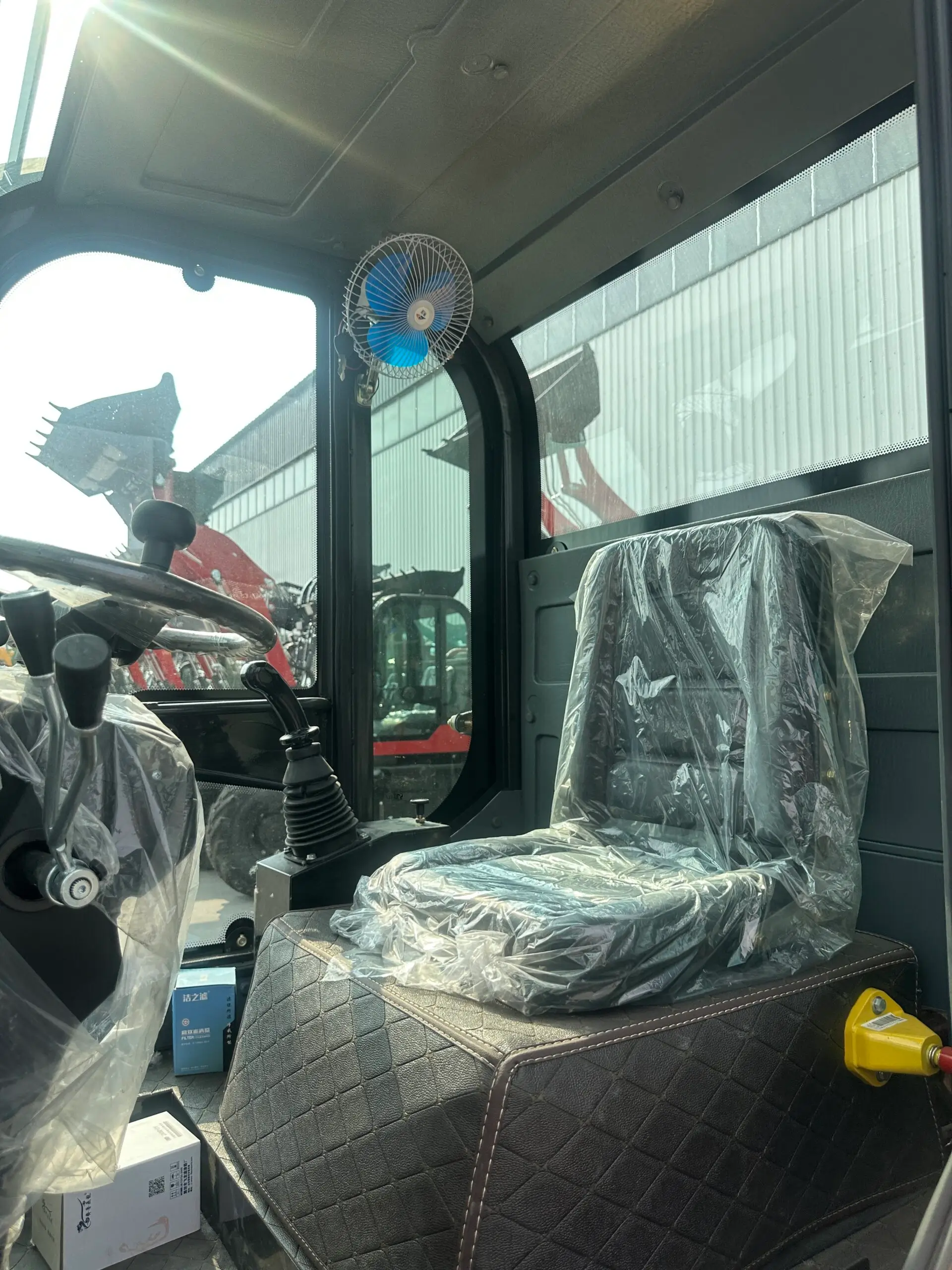

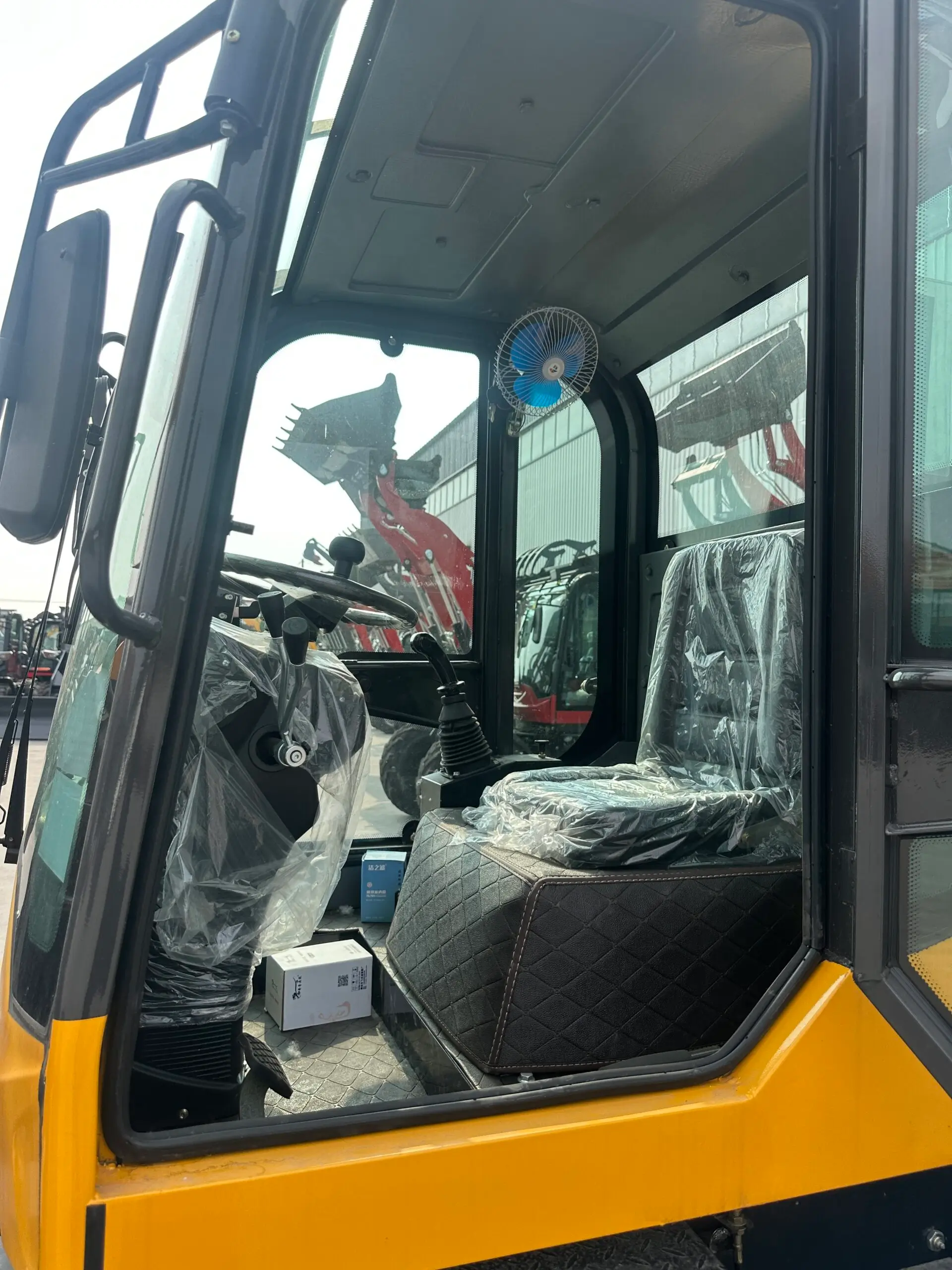

| Cabin | Type | ROPS and FOPS type |
| Air Conditioning System | Optional | |
| Vehicle | Min. Turning Radius | 2.0m |
| Min. Ground Clearance | 350 mm | |
| Operating Weight | 2100 Kg | |
| Overall Size (LxWxH) | 3300 x 1500 x 2350 mm | |
| Optional Accessories | HUICHAI Engine | 34KW |
| Bucket Width Option | 1000mm | |
| Air Conditioner | Optional inside cabin |
Discuss Your MG910H Requirement
Send your application and target configuration to receive a current export quotation.
