MEGA Product Detail

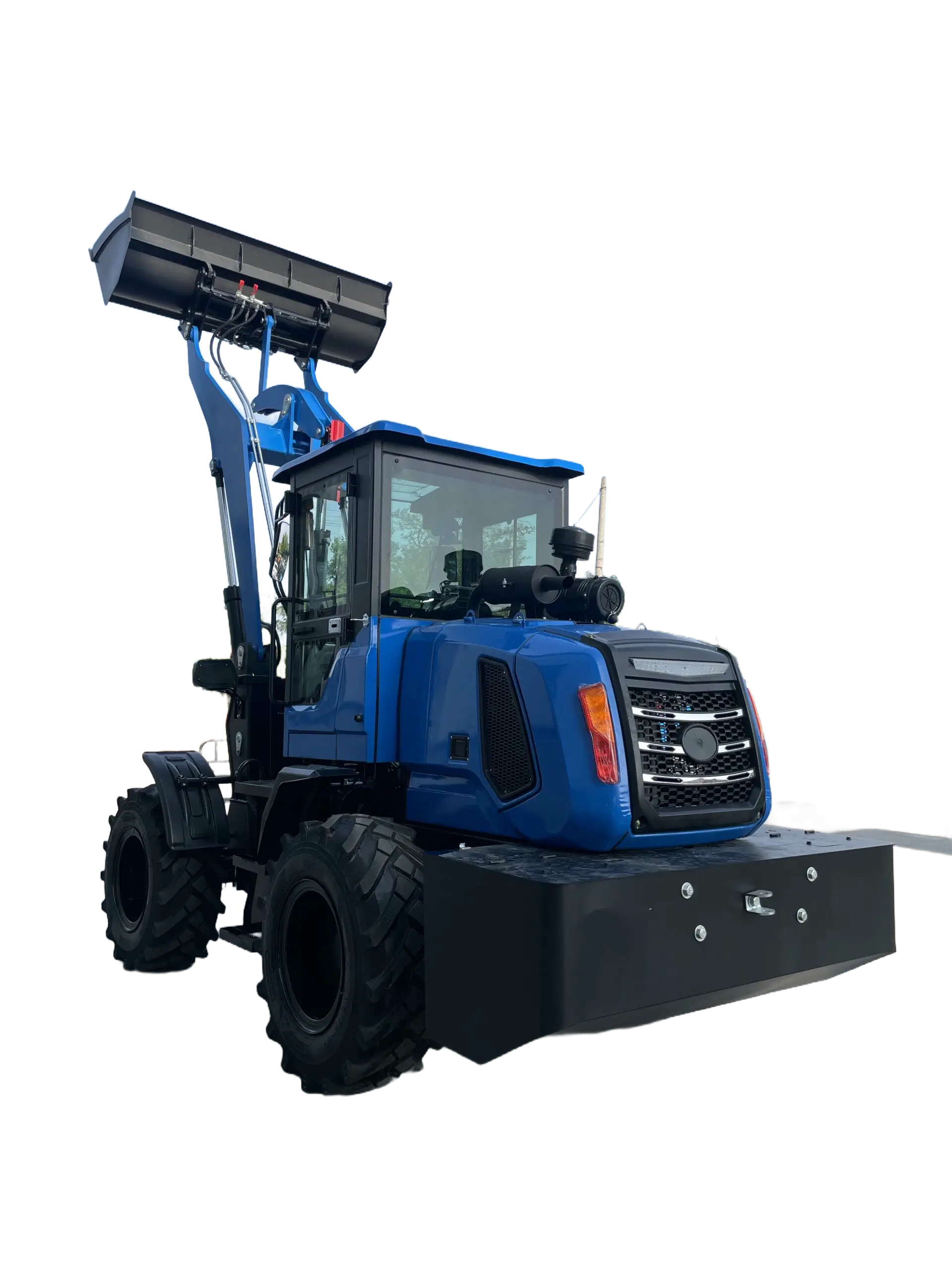

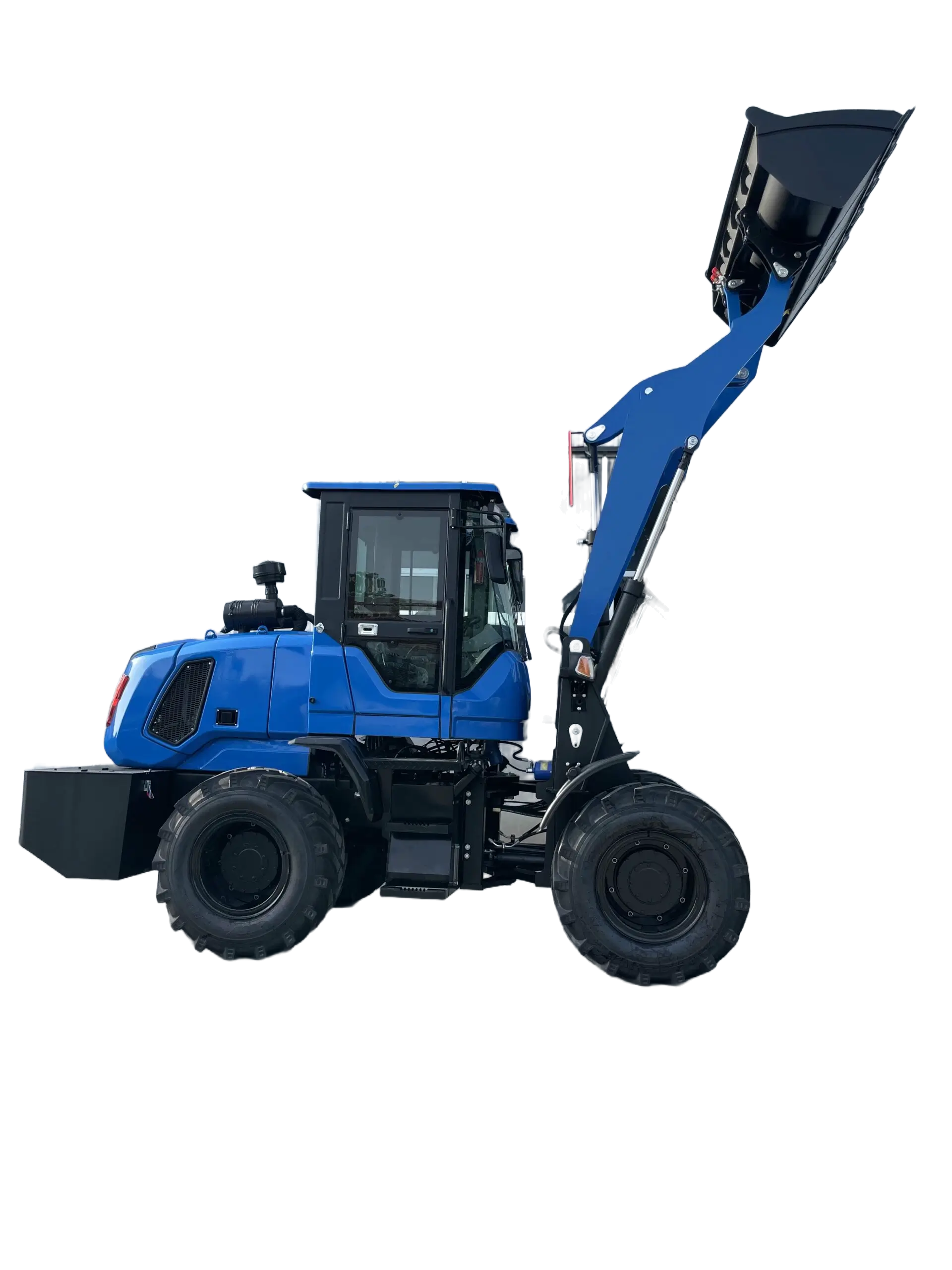

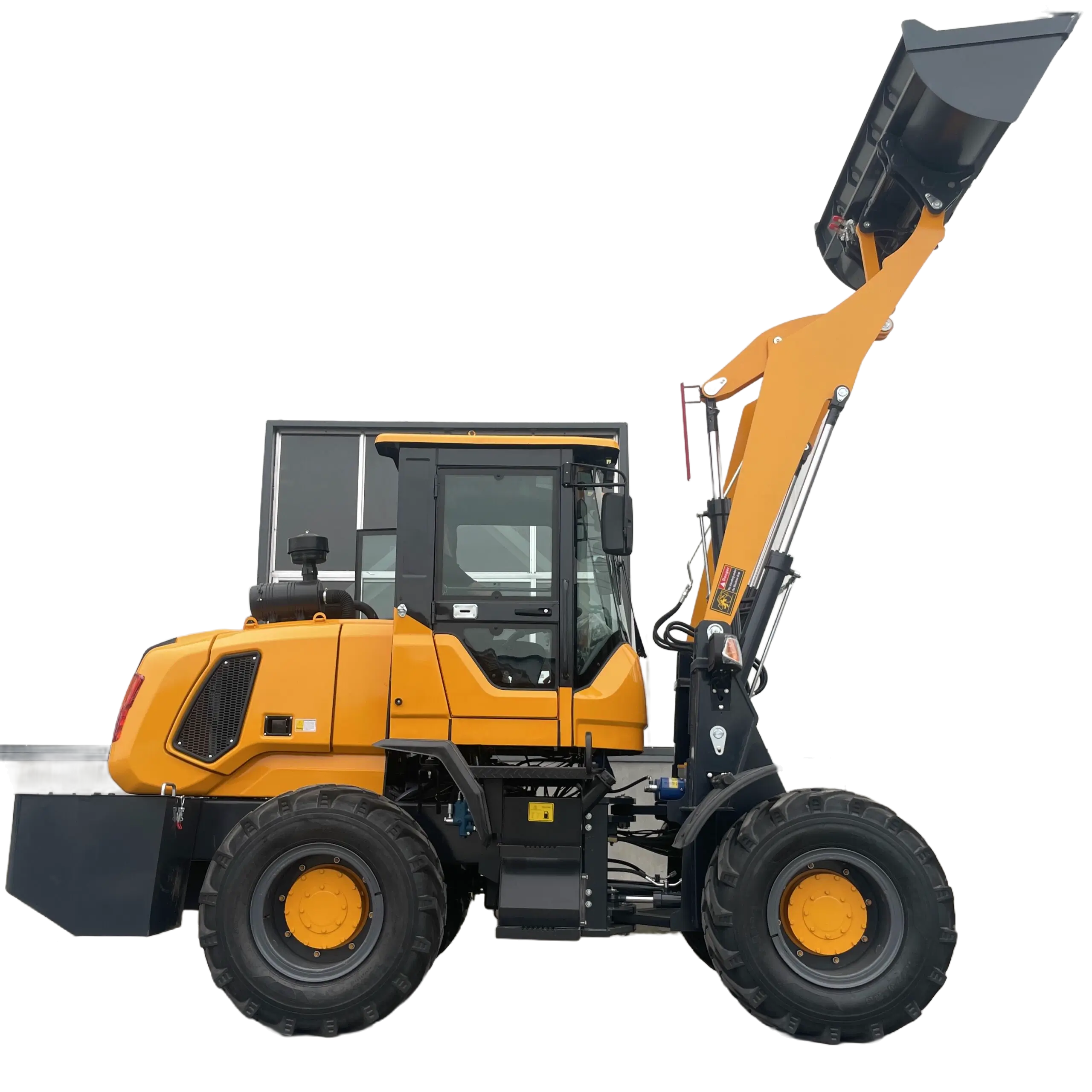

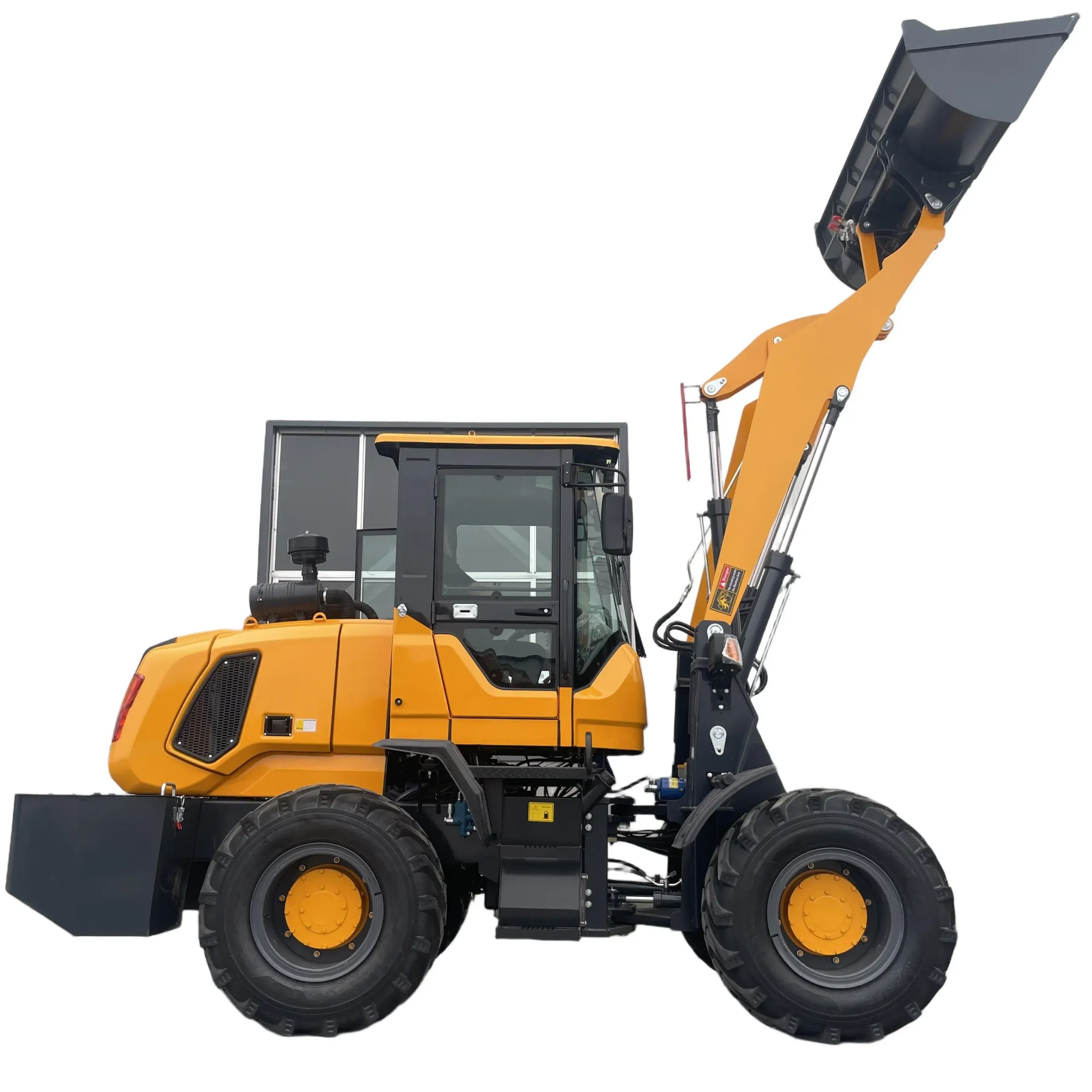

MG936 Wheel Loader
MG936 is a wheel loader supplied for reliable day-to-day work, practical operation and export-ready project support.
MG936 Equipment Overview
MG936 is a wheel loader supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.
Product Gallery
Technical Information
Product Overview
MG936 wheel loader is a 2-ton bucket loader with wheel-side reducer driving axle, full hydraulic transmission case and articulated chassis for complex off-road work.
Key Details
- Bucket automatically lays flat at high dumping position, shortening work time and improving efficiency.
- Air-over-oil assist caliper braking system.
- Split type torque converter is designed for easier maintenance and lower overheating risk.
- Optional HF, YUNNEI, YUCHAI or CUMMINS engine is available.
| Bucket | Rated Load | 2000 Kg |
|---|---|---|
| Bucket Capacity | 1.2 M3 | |
| Bucket Width | 2000 mm | |
| Dumping Height | 3500 mm | |
| Dumping Reach | 1000 mm | |
| Engine | Model | CHANGFA, 4102 Turbo Charged |
| Rated Power / Rated Speed | 78 KW / 106 HP | |
| Emission Standard | Euro II | |
| Chassis | Structure | Articulated chassis |
| Articulation Angle | 35 degrees | |
| Transmission Gear | Automatic, 4F+4R shift | |
| Driving and Steering | 4-Wheel drive (4×4), hydraulic articulated steering | |
| Wheelbase | 2550 mm | |
| Tread | 1580 mm | |
| Axles | Medium wheel-side reducer driving axle | |
| Torque Converter | YJ265 split type | |
| Brake | Air brake | |
| Tyre Size | Off road steel cord type, 16/70-20 | |
| Cabin | Type | ROPS and FOPS type |
| Air Conditioning System | Optional | |
| Vehicle | Min. Turning Radius | 5.5 m |
| Min. Ground Clearance | 400 mm | |
| Operating Weight | 5300 Kg | |
| Overall Size (LxWxH) | 6150 x 2050 x 2950 mm | |
| Optional Accessories | Engine Options | HF Engine 75 KW, YUNNEI 76 KW, YUCHAI 78 KW, CUMMINS 75 KW |
| Hydraulic Joystick | Optional | |
| Air Conditioner | Optional inside cabin |
Specification Note
The above parameters may change due to design improvement, so the ordered machine may differ from the listed information without advance notification.
Advantage
The wheel loader is tested on construction sites and is positioned for quality, efficiency and reliable work experience.
Service
Warranty: one year.
