MG939 Wheel Loader

MG939 is a wheel loader supplied for reliable day-to-day work, practical operation and export-ready project support.

Request a Quote
View Product Range
MG939 Wheel Loader

MG939 Equipment Overview

MG939 is a wheel loader supplied for reliable day-to-day work, practical operation and export-ready project support. Contact LAIZHOU MEGA DEVELOPMENT CO., LTD with your required configuration, operating conditions and destination port for current technical information.

Product Gallery

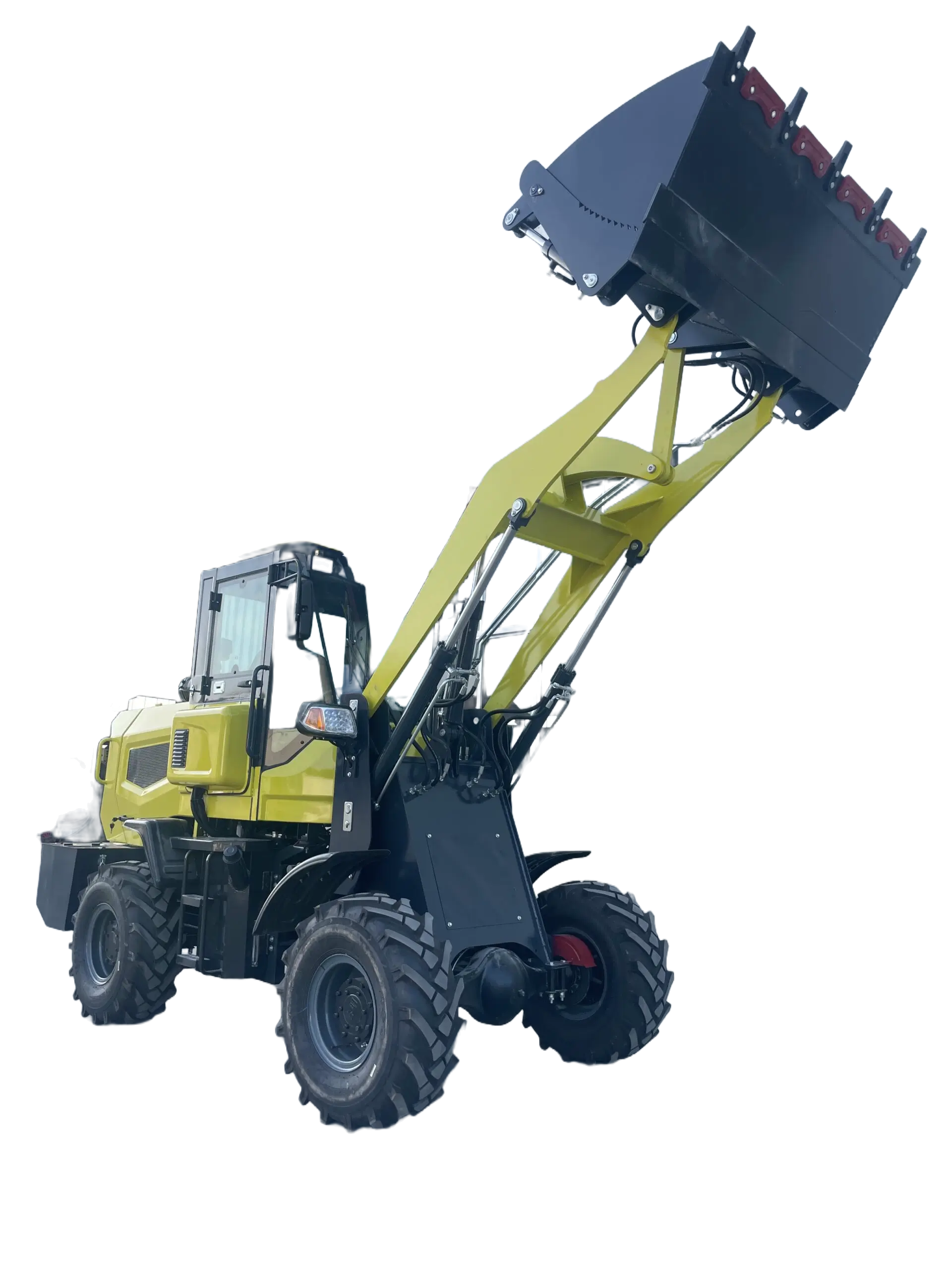

MG939 Wheel Loader view 3

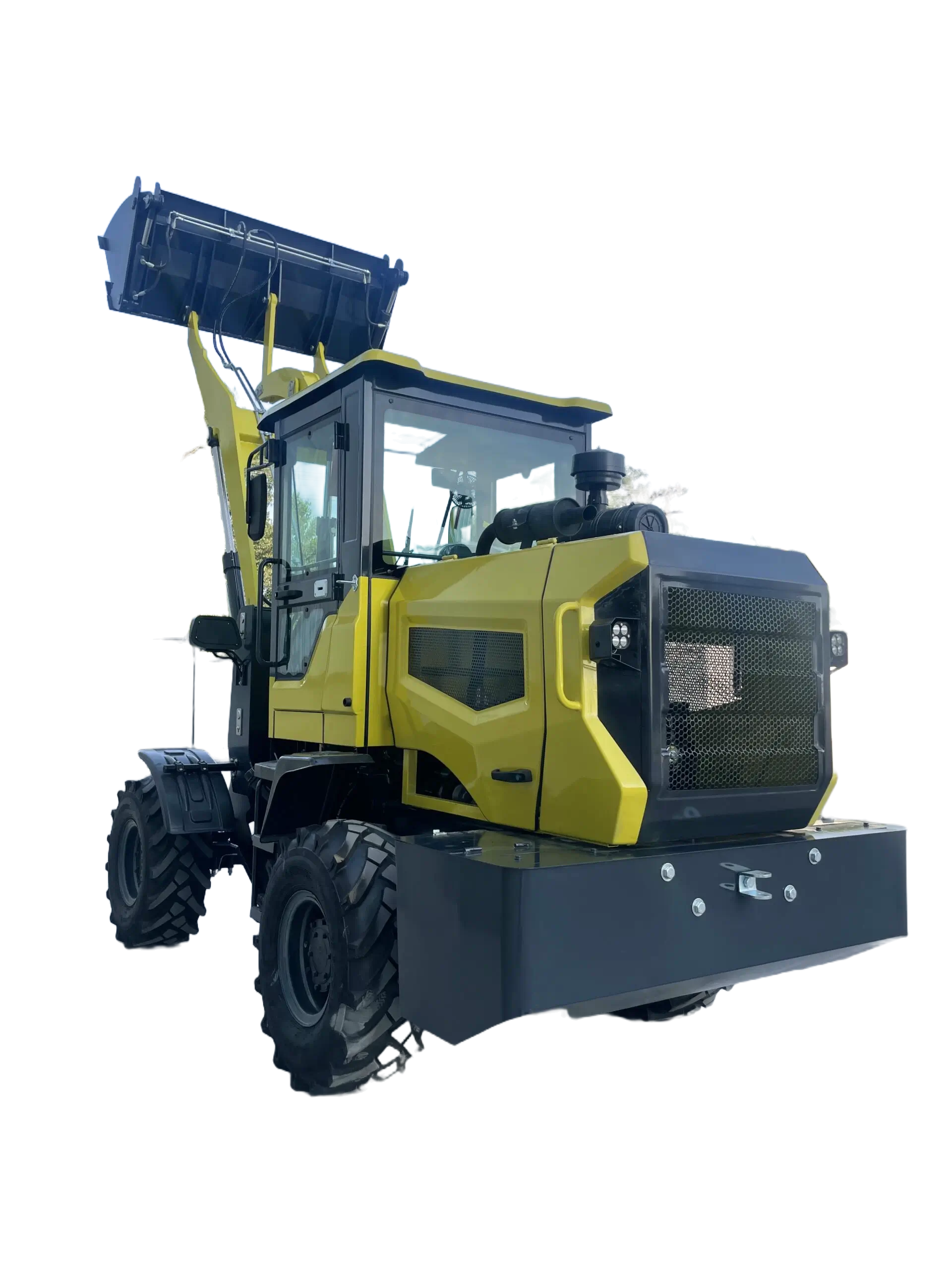

MG939 Wheel Loader view 4

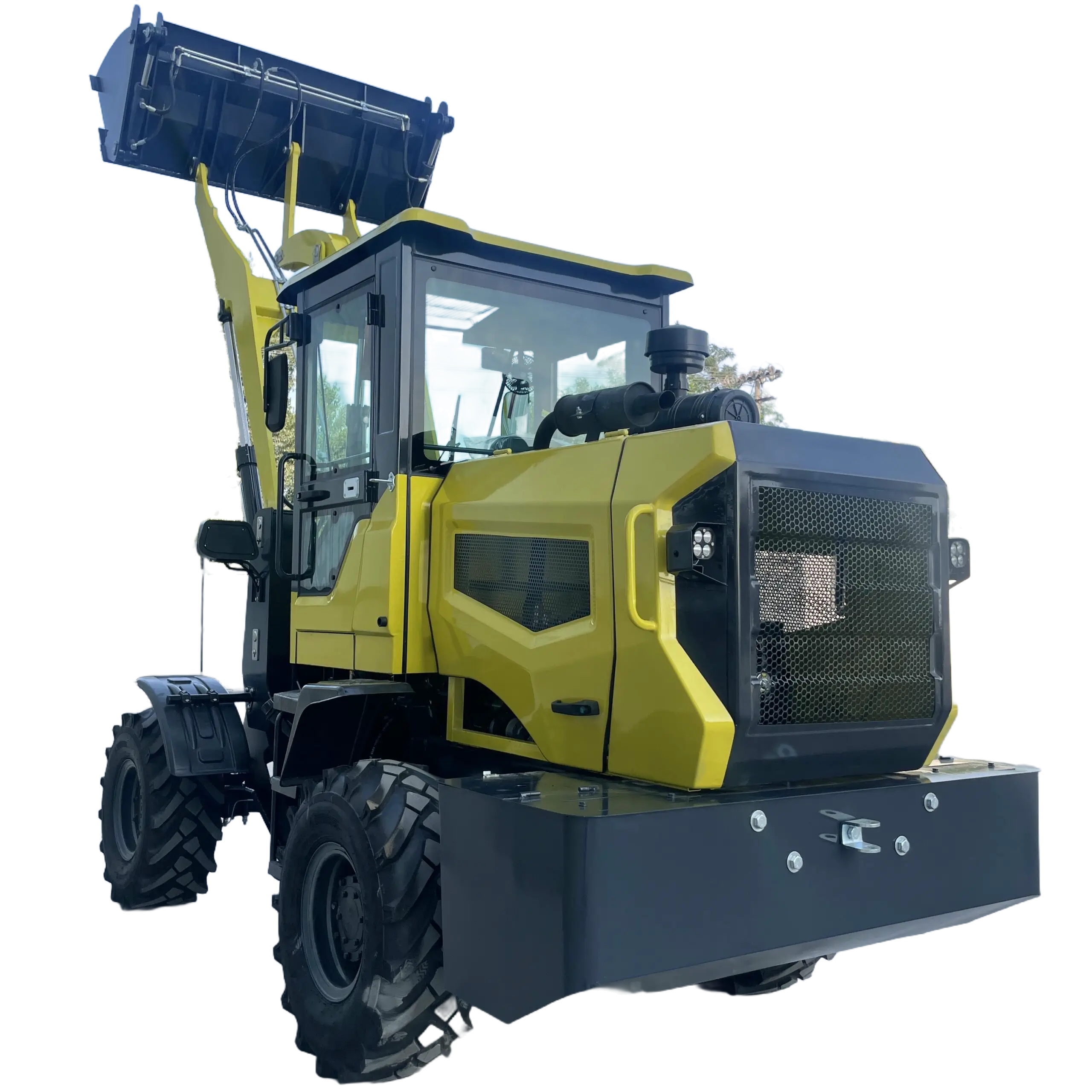

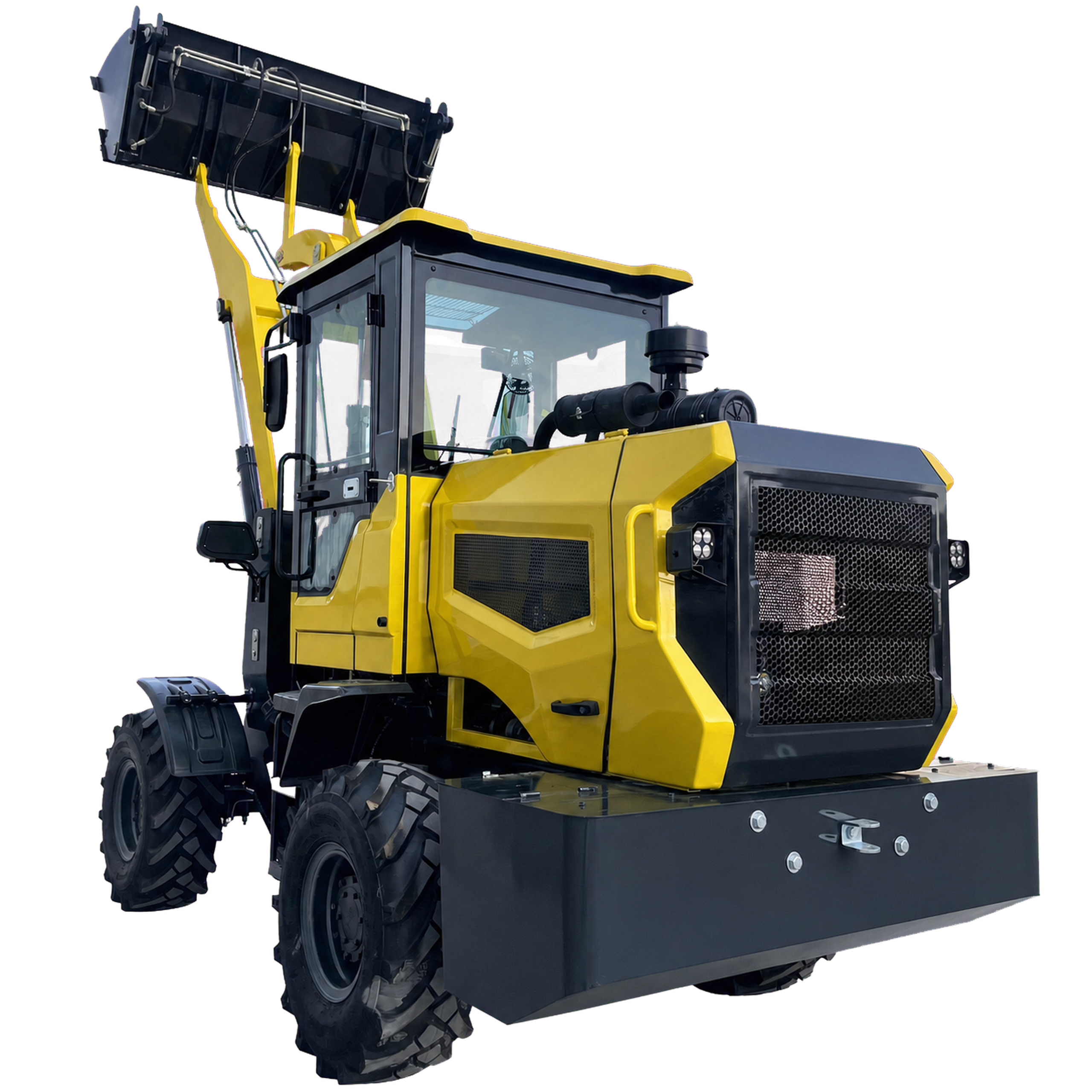

MG939 Wheel Loader view 5

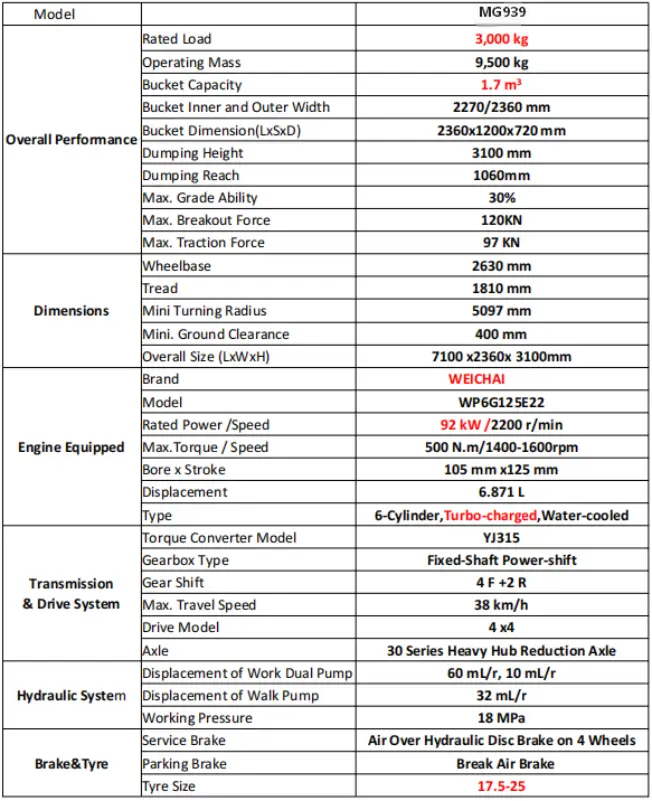

Technical Information

ModelMG939
Overall PerformanceRated Load3,000 kg
Operating Mass9,500 kg
Bucket Capacity1.7 m³
Bucket Inner and Outer Width2270/2360 mm
Bucket Dimension(LxSxD)2360x1200x720 mm
Dumping Height3100 mm
Dumping Reach1060mm
Max. Grade Ability30%
Max. Breakout Force120KN
Max. Traction Force97 KN
DimensionsWheelbase2630 mm
Tread1810 mm
Mini Turning Radius5097 mm
Mini. Ground Clearance400 mm
Overall Size (LxWxH)7100 x2360x 3100mm
Engine EquippedBrandWEICHAI
ModelWP6G125E22
Rated Power /Speed92 kW /2200 r/min
Max.Torque / Speed500 N.m/1400-1600rpm
Bore x Stroke105 mm x125 mm
Displacement6.871 L
Type6-Cylinder,Turbo-charged,Water-cooled
Transmission
& Drive System		Torque Converter ModelYJ315
Gearbox TypeFixed-Shaft Power-shift
Gear Shift4 F +2 R
Max. Travel Speed38 km/h
Drive Model4 x4
Axle30 Series Heavy Hub Reduction Axle
Hydraulic SystemDisplacement of Work Dual Pump60 mL/r, 10 mL/r
Displacement of Walk Pump32 mL/r
Working Pressure18 MPa
Brake&TyreService BrakeAir Over Hydraulic Disc Brake on 4 Wheels
Parking BrakeBreak Air Brake
Tyre Size17.5-25

Discuss Your MG939 Requirement

Send your application and target configuration to receive a current export quotation.

Email LAIZHOU MEGA DEVELOPMENT CO., LTD Sales
