MEGA Product Detail

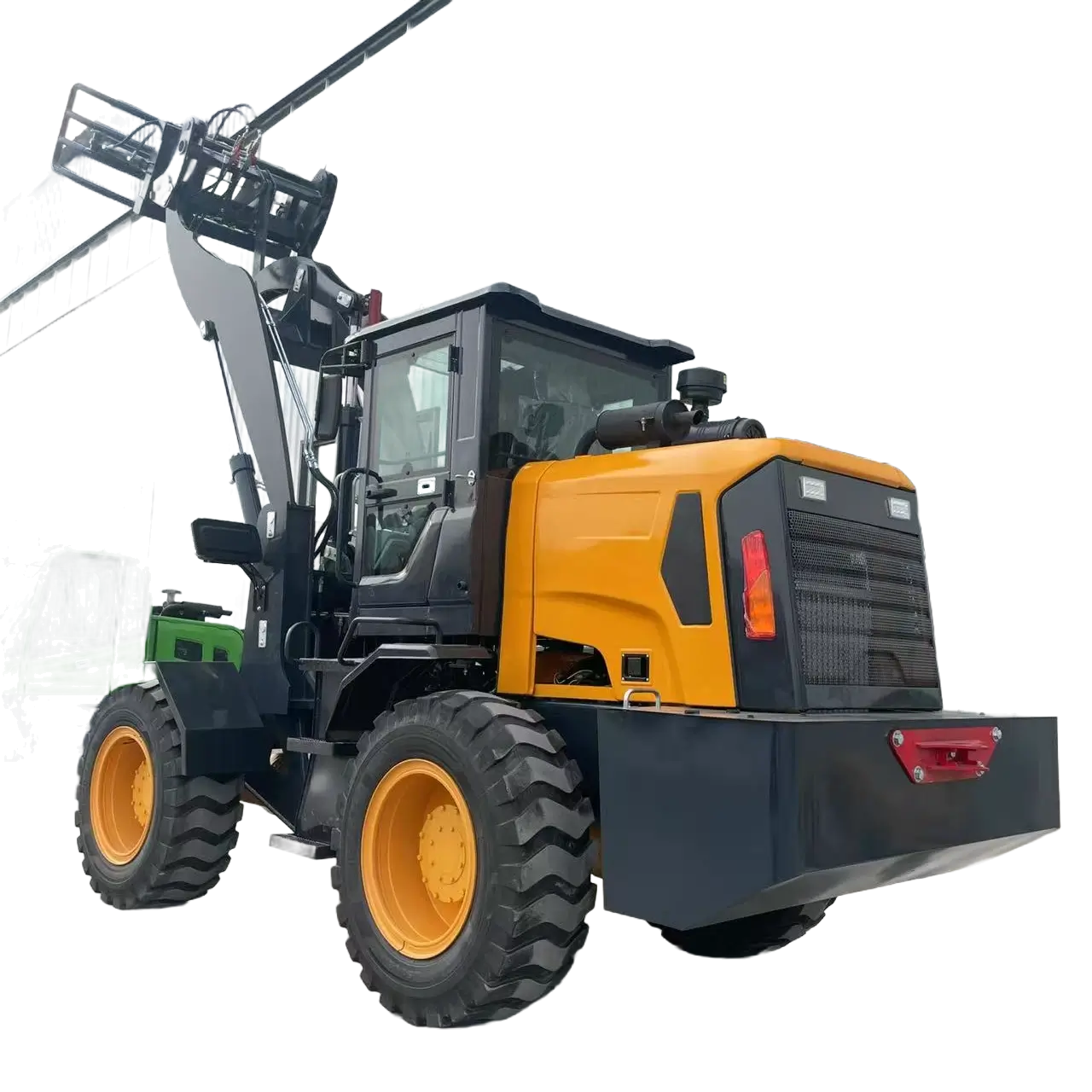

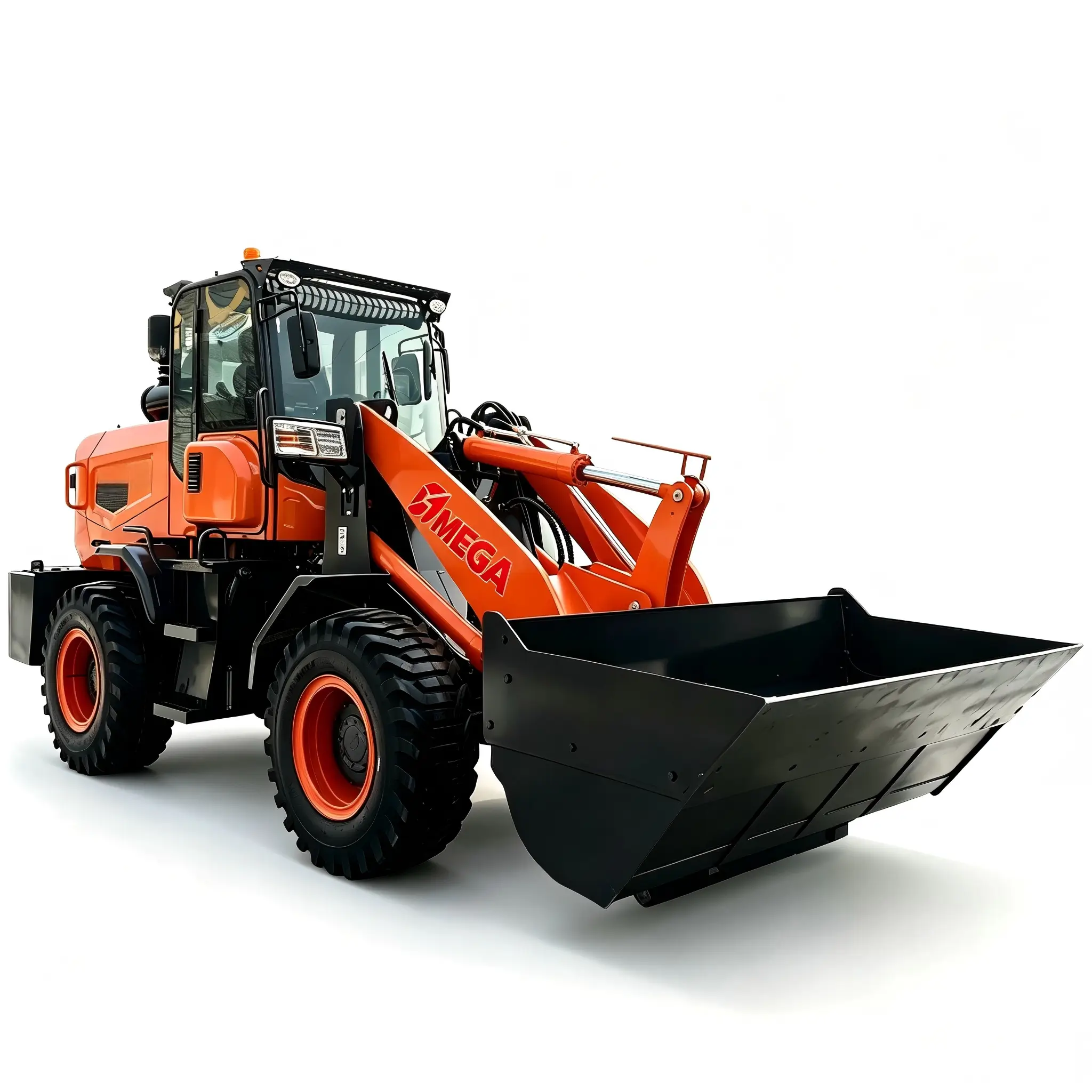

MG958 Wheel Loader
MG958 is a wheel loader supplied for reliable day-to-day work, practical operation and export-ready project support.
MG958 Equipment Overview
MG958 is a wheel loader supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.
Product Gallery
Technical Information
Product Overview
MG958 wheel loader is a 2500kg rated-load loader with 1.5m3 bucket capacity, 4×4 automatic transmission and large wheel reducer axle.
Key Details
- 3500-4500 mm dumping height with 805 mm dumping reach.
- HUAJIE HJ4108ZY4 engine with 92KW/2400 rpm rated power.
- Automatic transmission with 4 forward and 4 reverse shifts.
| Overall Performance | Rated Load | 2500 kg |
|---|---|---|
| Operating Weight | 5500 kg | |
| Bucket Capacity | 1.5m3 | |
| Bucket Width | 1600 mm | |
| Dumping Height | 3500-4500 mm | |
| Dumping Reach | 805 mm | |
| Max. Gradeability | 30% | |
| Dimensions | Wheelbase | 2400 mm |
| Tread | 1850 mm | |
| Overall Size | 6300 x 2000 x 2725 | |
| Engine Equipped | Brand | HUAJIE |
| Model | HJ4108ZY4 | |
| Rated Power / Speed | 92 KW / 2400 rpm | |
| Idling Speed | <=750 +50 | |
| Bore | 108 mm | |
| Displacement | 4.578 L | |
| Rotation Direction | Counterclockwise from flywheel | |
| Emission Standard | Euro II, China State II | |
| Transmission and Drive System | Torque Converter | 280 hydraulic torque converter |
| Gearbox Type | Stepless speed change | |
| Gear Shift | 4 Forward Shift, 4 Reverse Shift | |
| Max. Drive Speed | 30 km/h | |
| Drive Mode | 4×4 | |
| Transmission Mode | Automatic transmission | |
| Drive Axle | Large wheel reducer axle | |
| Brake and Steering System | Service Brake | Single-tube air-cushioned oil clamp brake |
| Parking Brake | Soft-shaft caliper brake | |
| Steering Form | Load-sensing full hydraulic steering | |
| Brake and Tyre | Working Pump | Gear pump |
| System Voltage | 24V | |
| Tyre Size | 16/70-24 |
Discuss Your MG958 Requirement
Send your application and target configuration to receive a current export quotation.
