MEGA Product Detail

MGY10H Road Roller

MGY10H is a road roller supplied for reliable day-to-day work, practical operation and export-ready project support.

Request a Quote
View Product Range
MGY10H Road Roller

MGY10H Equipment Overview

MGY10H is a road roller supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.

Product Gallery

MGY10H Road Roller view 2
MGY10H Road Roller view 3

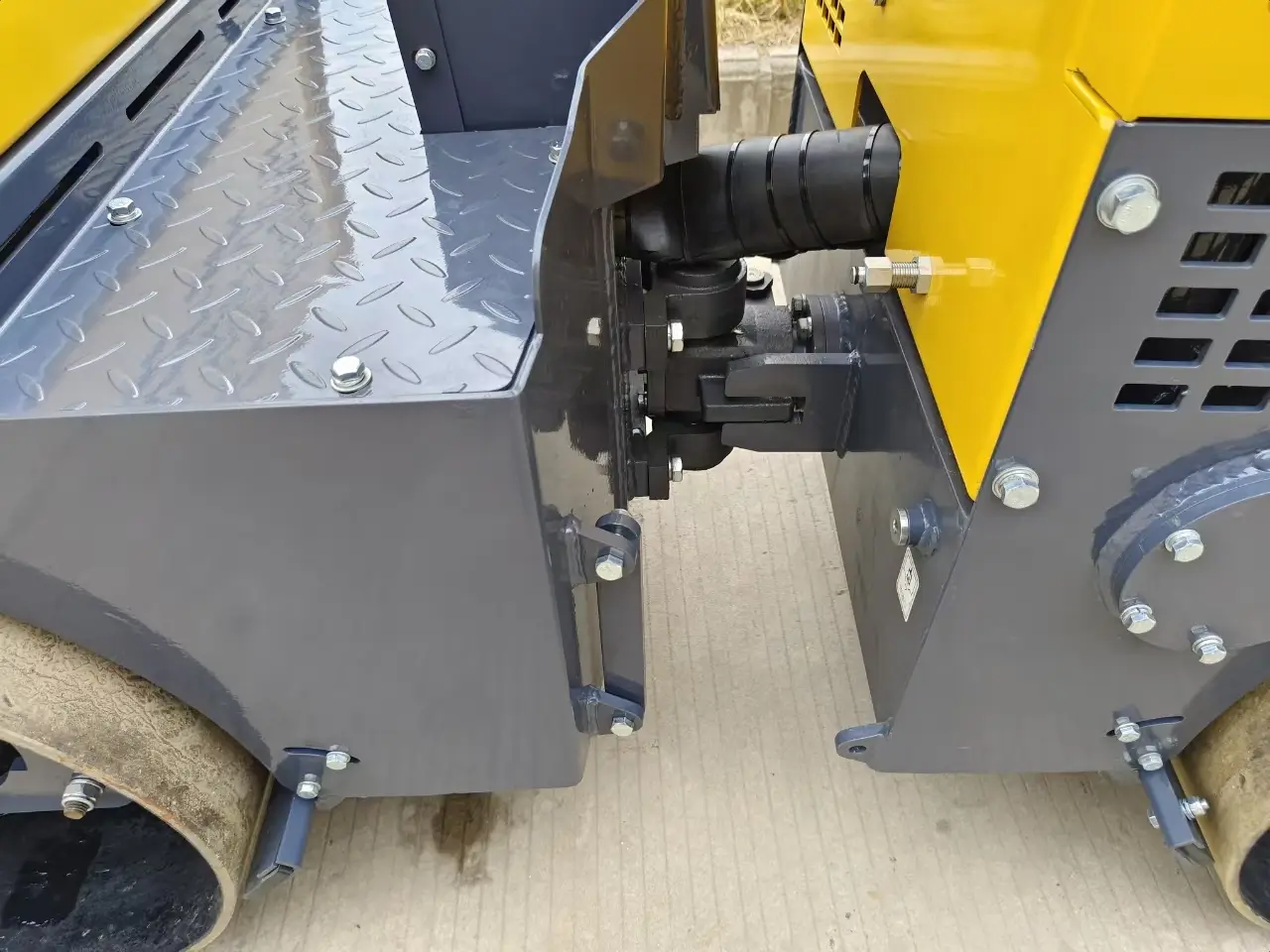

MGY10H Road Roller view 4

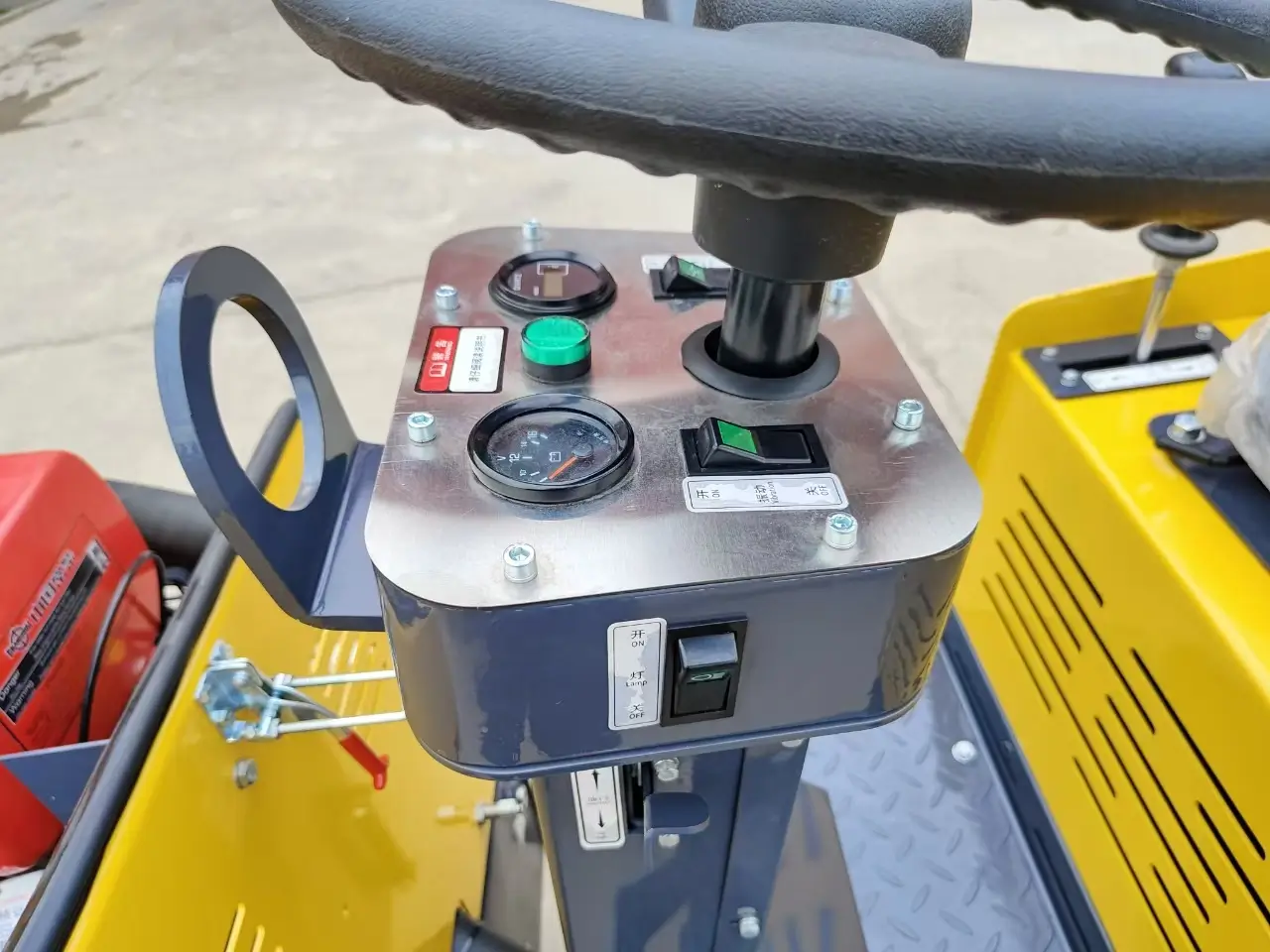

MGY10H Road Roller view 5

Technical Information

Product Overview

MGY10H is a 1T double-drum vibration road roller with front and rear hydraulic dual drive, front wheel vibration and hydraulic steering.

Key Details

  • Domestic first-line brand air-cooled diesel engine provides strong power and stable performance.
  • Eccentric vibration system provides strong excitation force and convenient maintenance.
  • Hydraulic steering, articulated frame and electronic water spray system support asphalt work.
Technical ParametersModelMGY10H
Work Quality1000 kg
Excitation Force25 kN
Vibration Frequency70 Hz
Amplitude0.5 mm
Vibrating Wheel Width740/800 mm
Vibrating Wheel Diameter530 mm
Walking Speed0-6 km/h
Gradability30%
Minimum Turning Radius1800 mm
Wheelbase1270 mm
Battery Voltage12 V
Diesel Tank / Water Tank Capacity5/20 L
Diesel Engine Model and PowerChangchai / Changfa CF186FAE-5.9 kw
Overall Dimensions (LxWxH)1900 x 880 x 2200 mm (folded height 1720)

Discuss Your MGY10H Requirement

Send your application and target configuration to receive a current export quotation.
