TL16 Telescopic Loader
TL16 is a telescopic loader supplied for reliable day-to-day work, practical operation and export-ready project support.
TL16 Equipment Overview
TL16 is a telescopic loader supplied for reliable day-to-day work, practical operation and export-ready project support. Contact MEGA with your required configuration, operating conditions and destination port for current technical information.

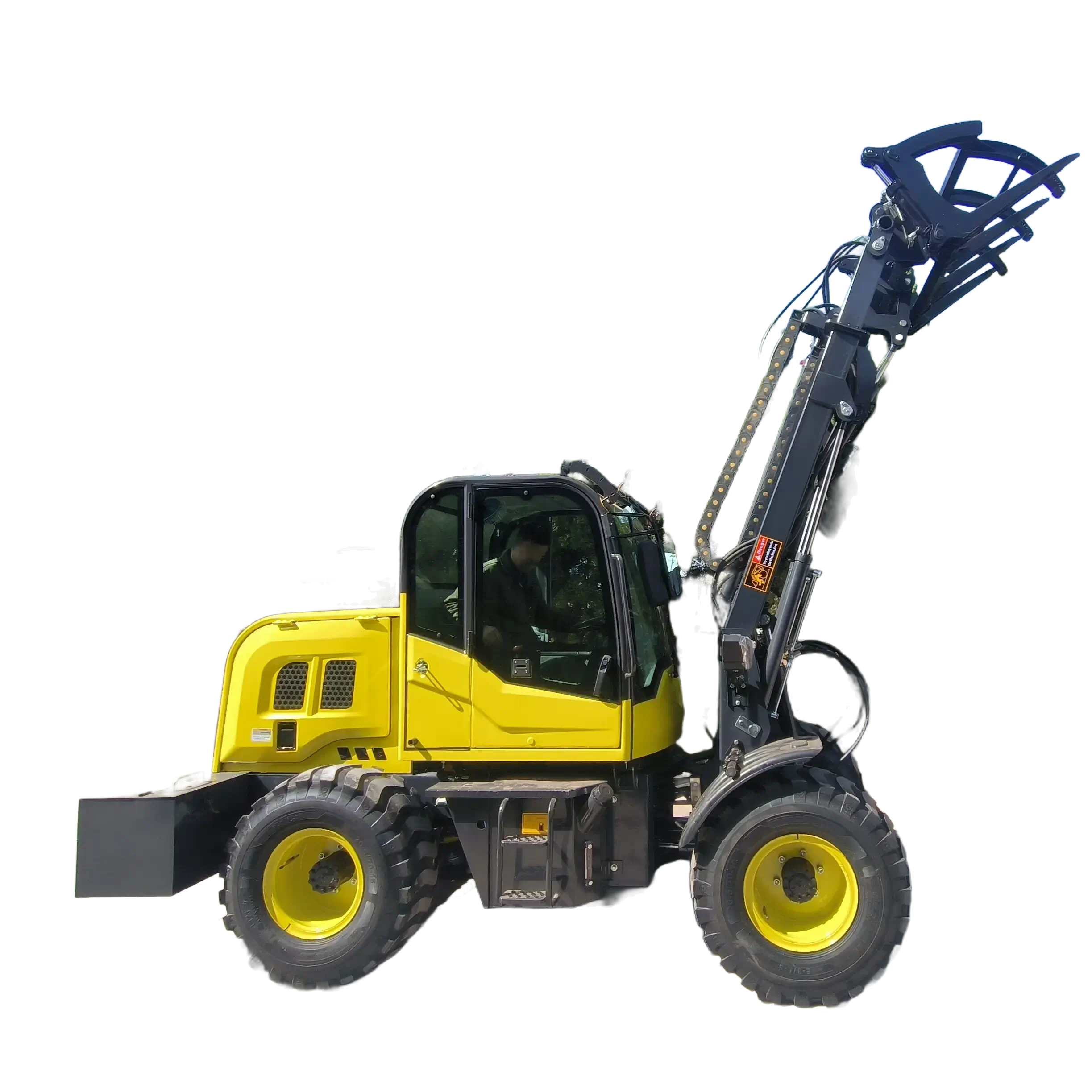

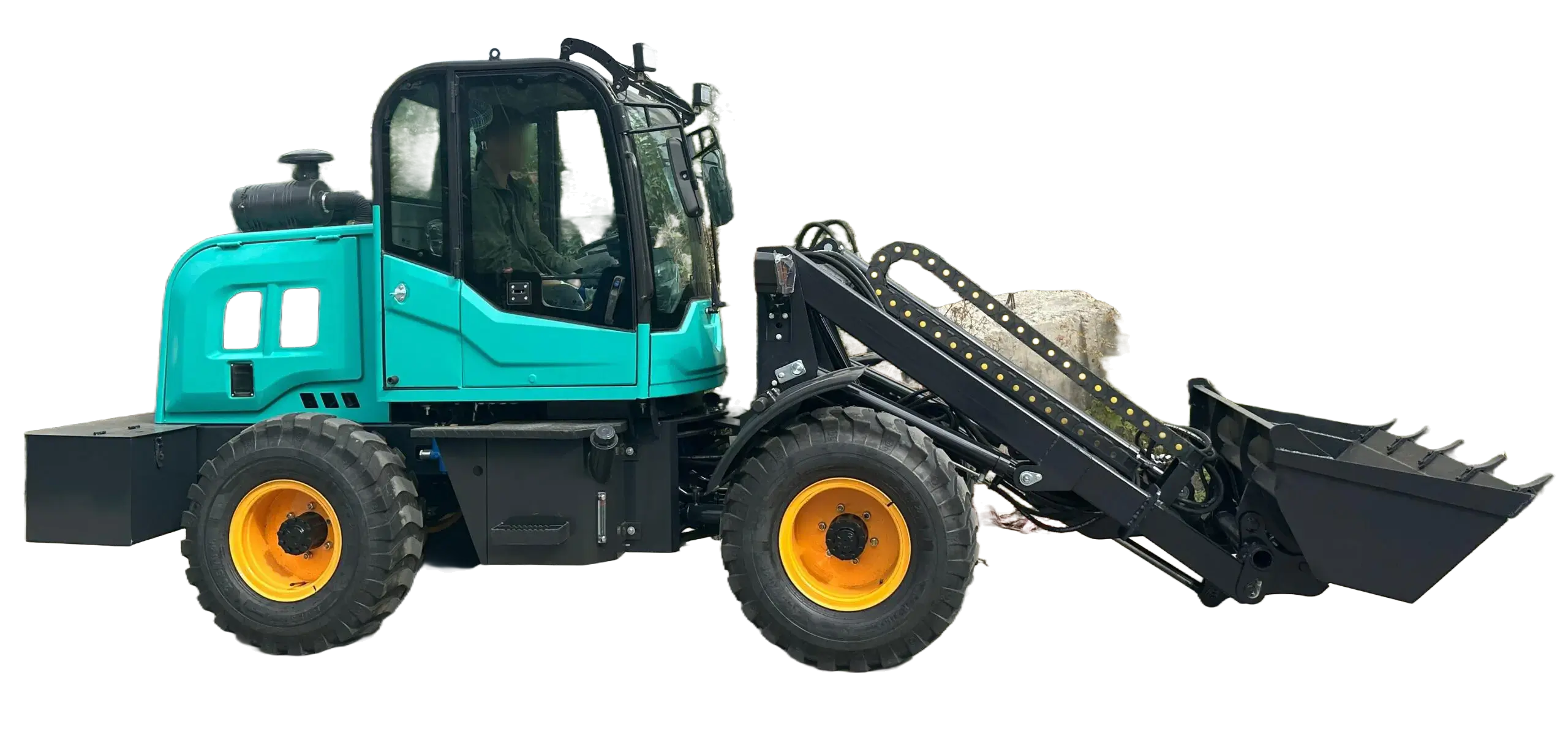

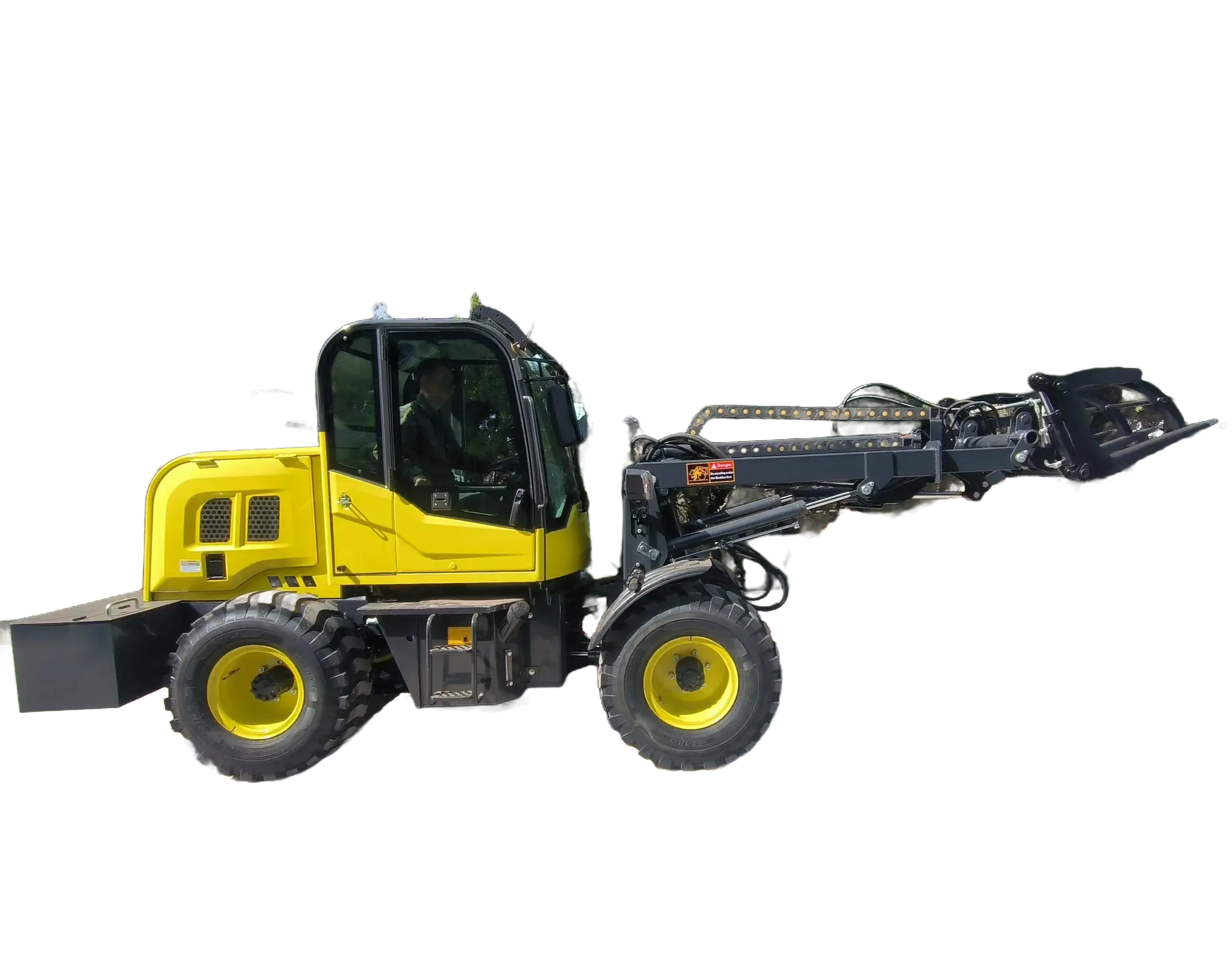

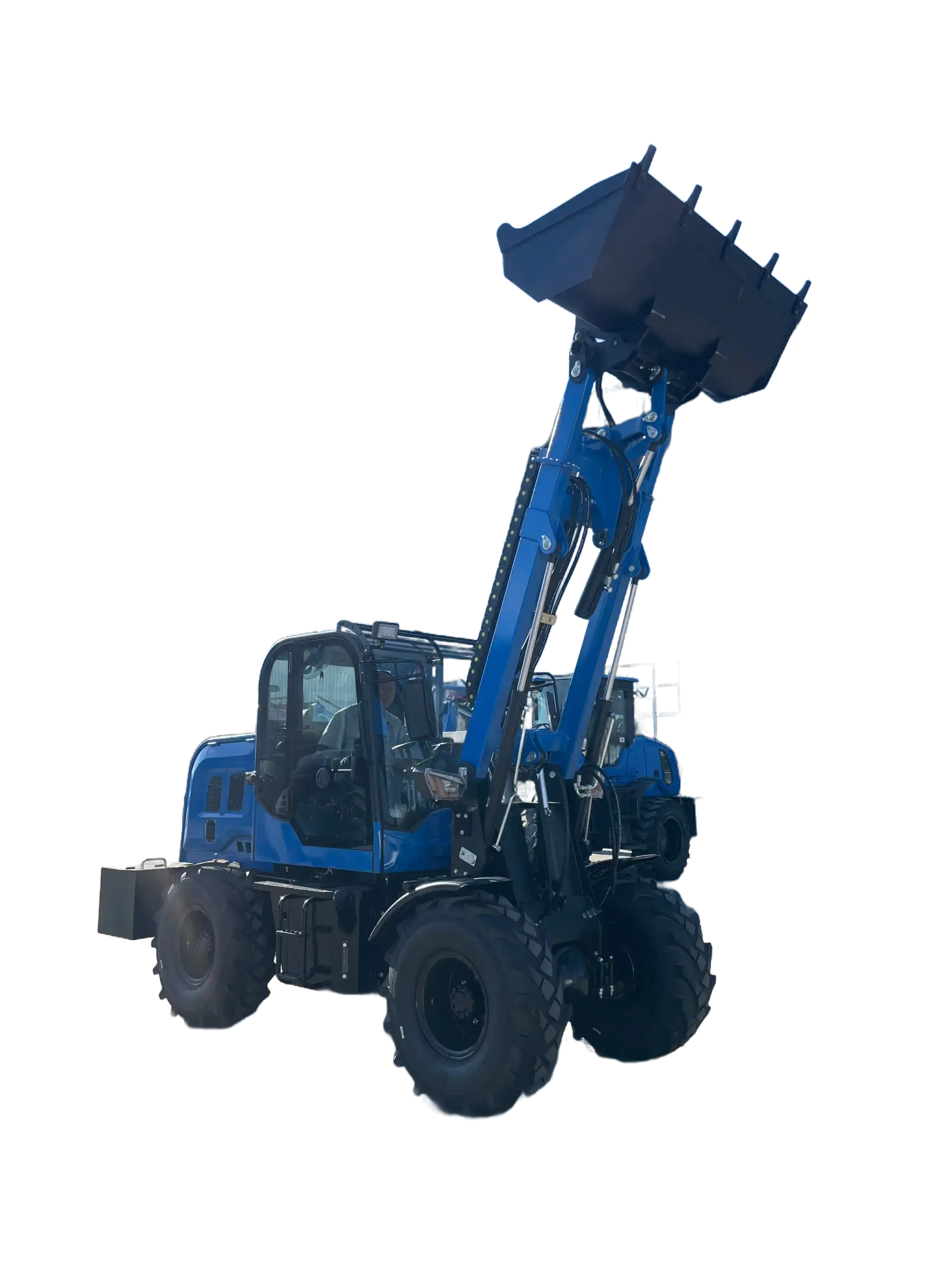

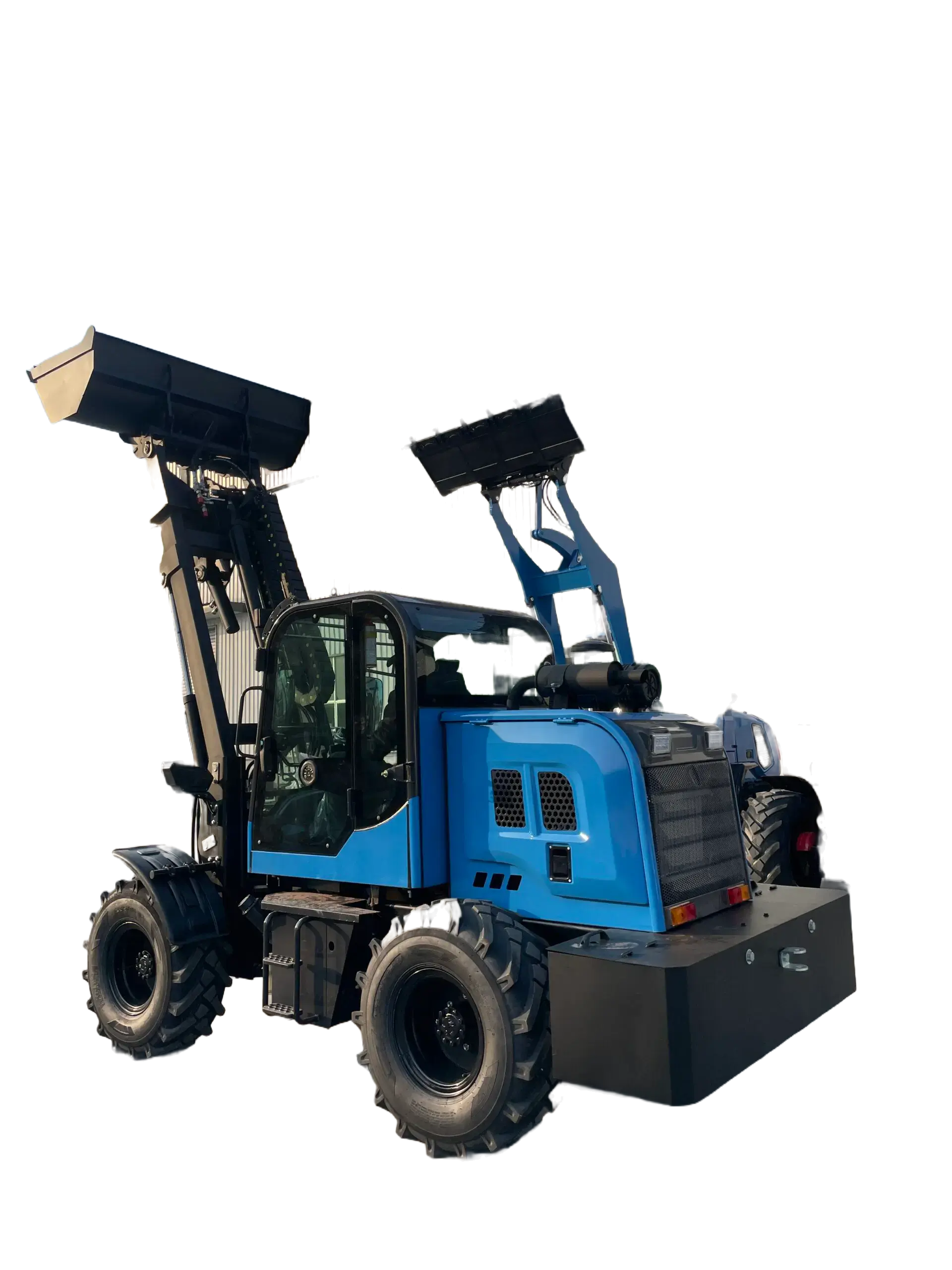

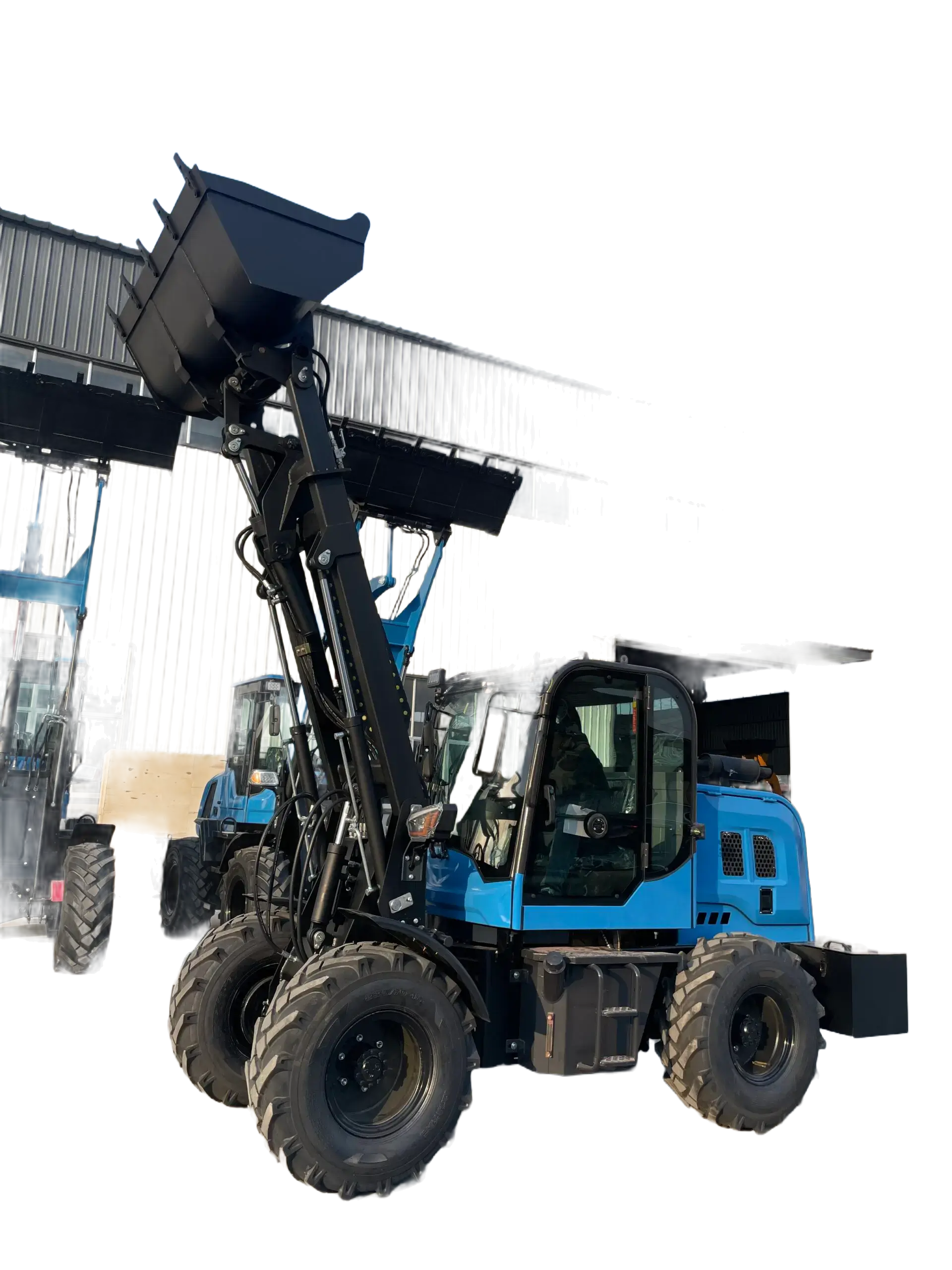

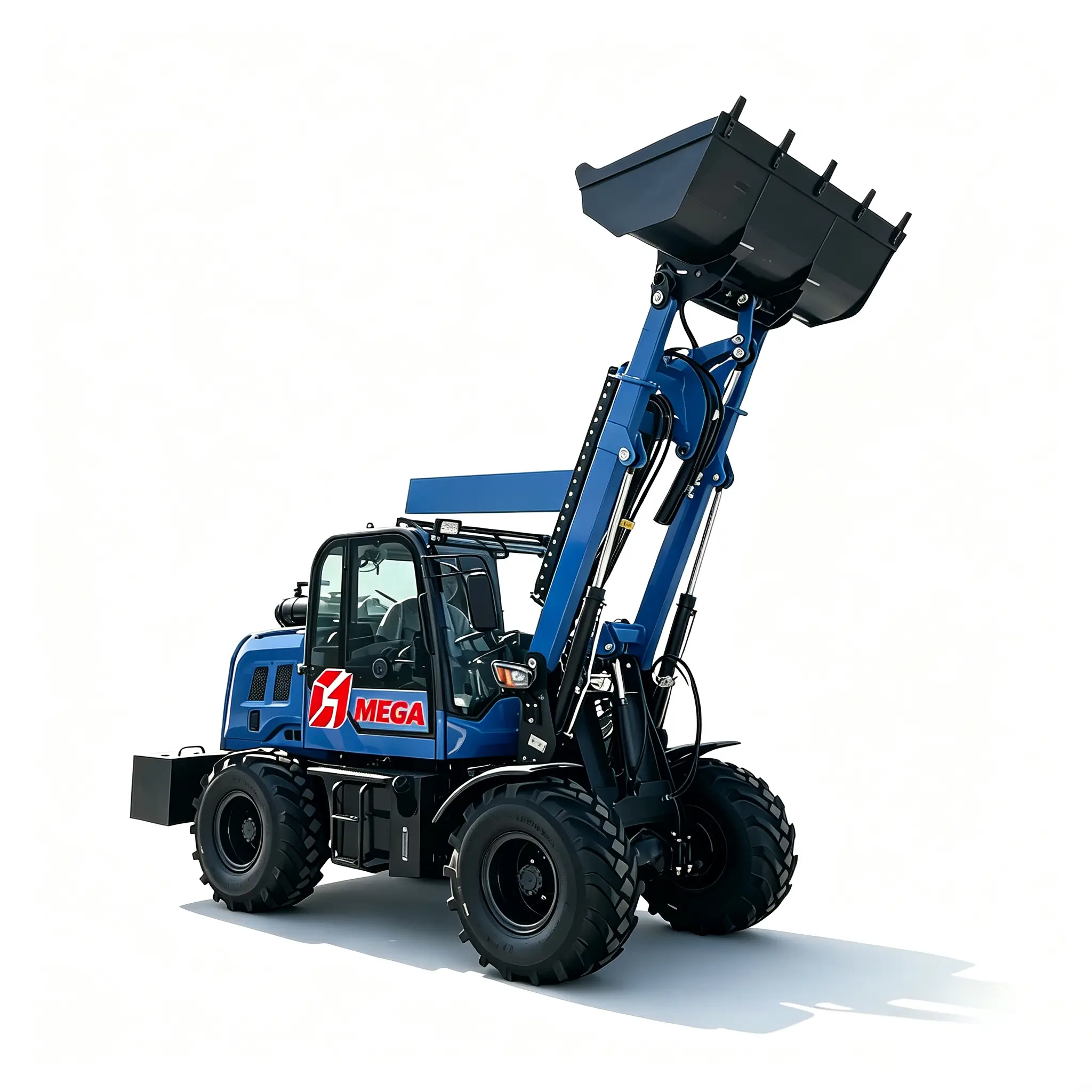

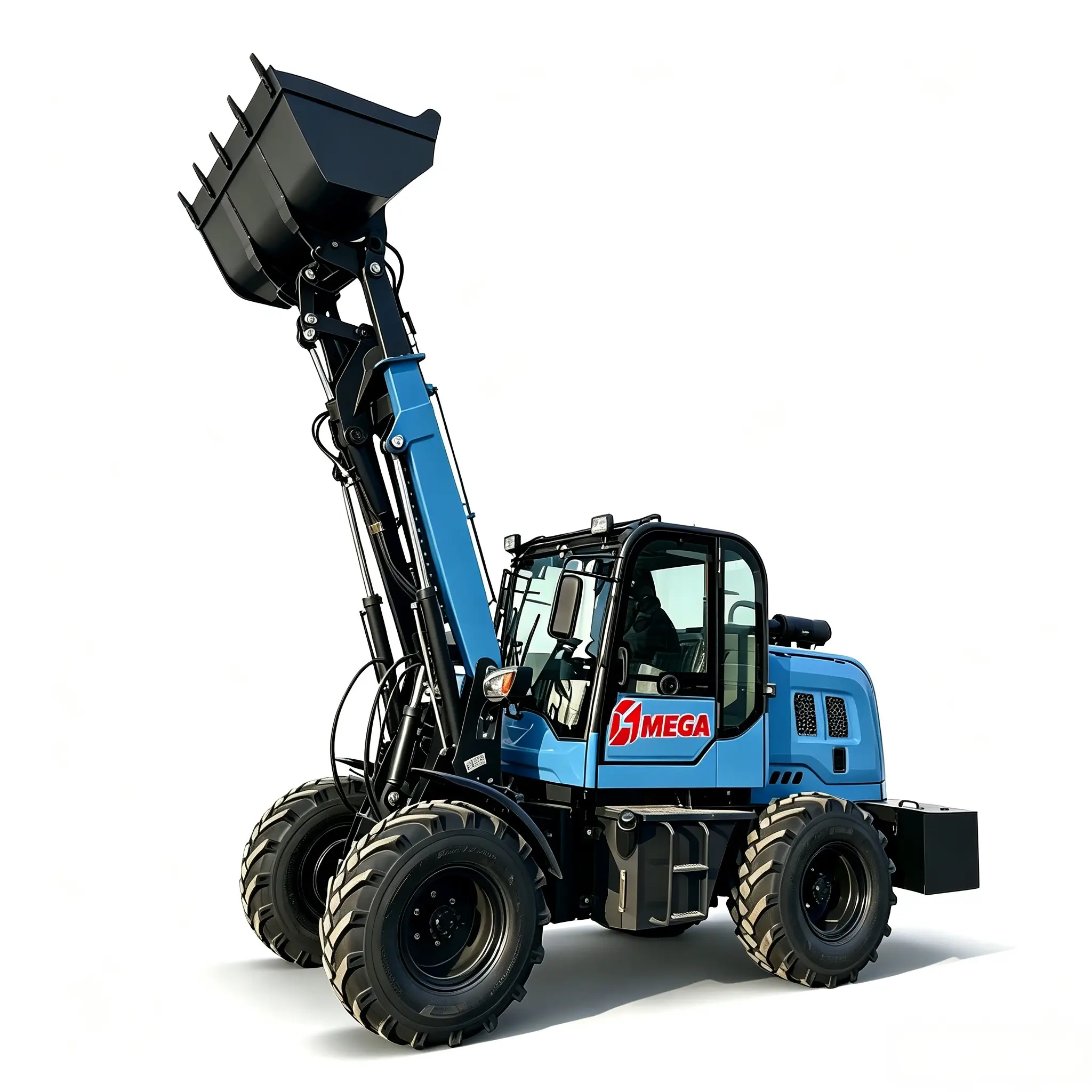

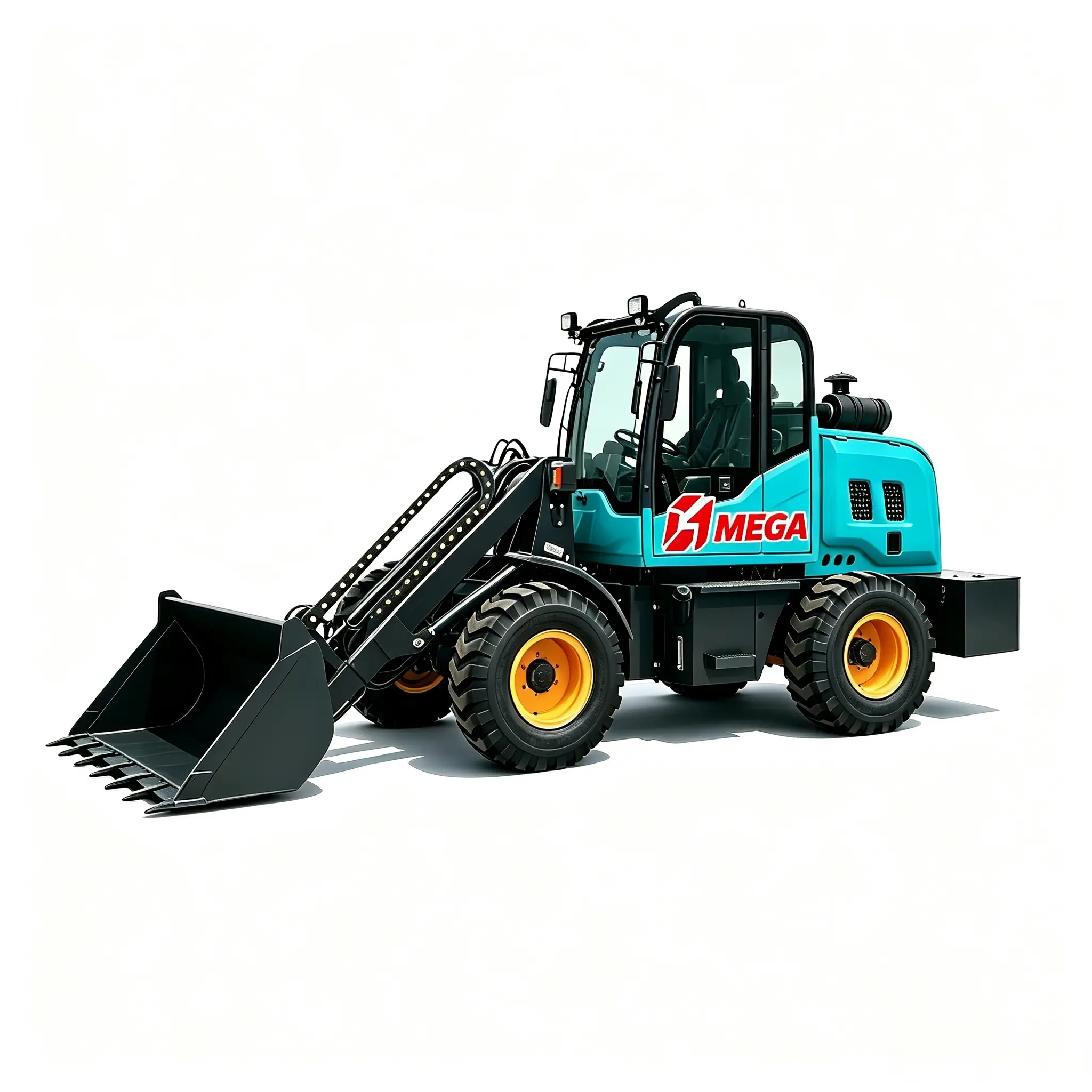

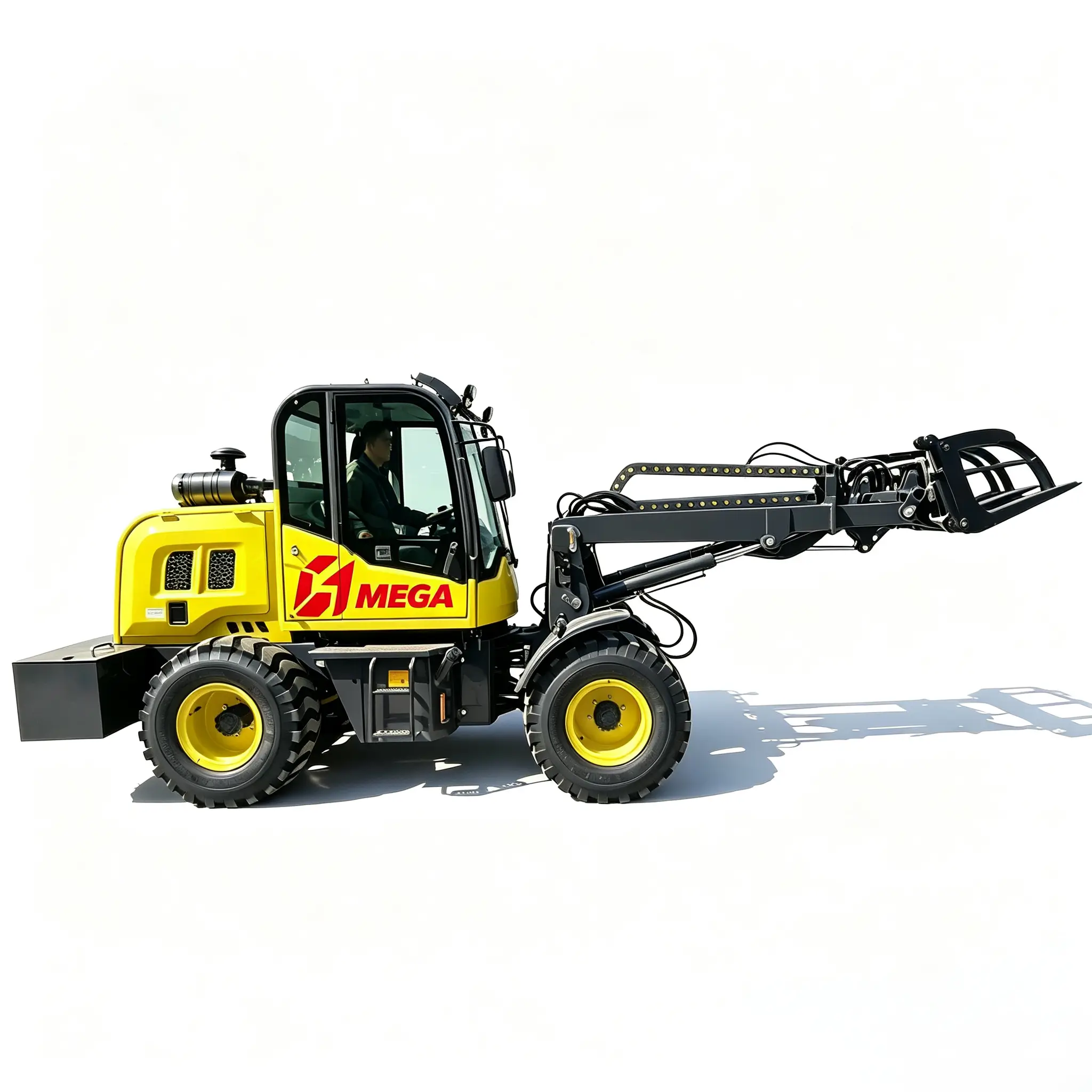

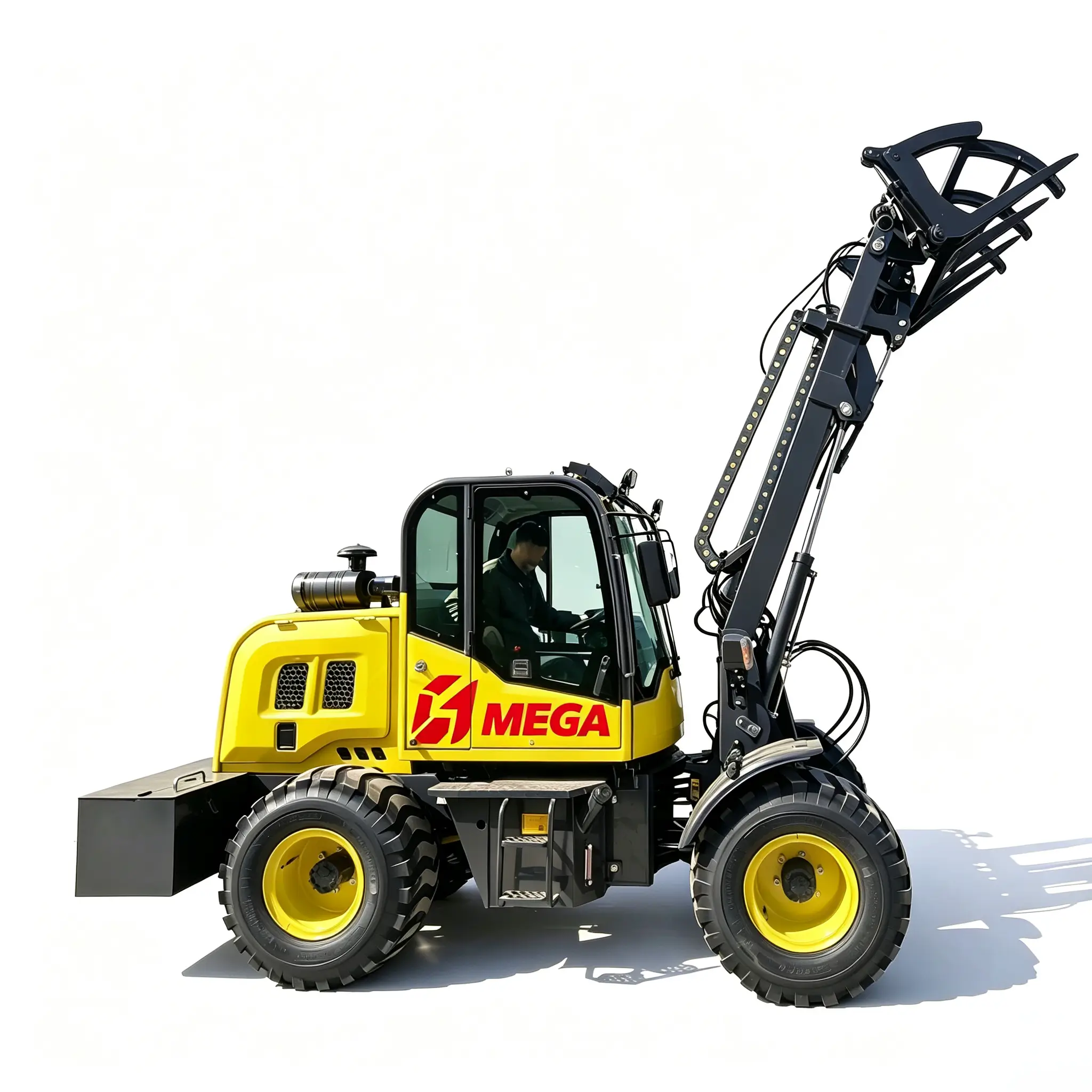

Product Gallery
Technical Information
Model
Telescopic Boom Wheel Loader (1 Ton)
TL16 is a telescopic boom wheel loader built for farm, yard and material-handling work where higher reach and attachment flexibility are required.
Product Introduction
The telescopic boom loader is an extendable loader that can raise the working arm when additional height is needed. It can work with attachments such as pallet forks, 4-in-1 buckets, grapple forks and grass forks.
Designed for farming and agricultural applications, it helps improve daily loading, handling and site work efficiency.
Features
- Two telescopic booms provide more stable and powerful lifting.
- Hydraulic pipe drag chain keeps the pipes neat and supports smooth reciprocating movement.
Technical Parameter Table
| Performance | Rated load with full extending arm | 600KG |
|---|---|---|
| Rated load without extending arm | 1000KG | |
| Bucket capacity | 0.3m³ | |
| Bucket width | 1600mm | |
| Dimension (L*W*H) | 5096*1500*1700mm | |
| Lifting height to the pin | 1390mm | |
| Lifting height to bucket | 3630mm | |
| Dumping height from bucket | 2700-3900mm | |
| Min. turning radius | 2666mm | |
| Engine | Engine model | 490C |
| Type | Naturally aspirated | |
| Engine power | 37KW | |
| No. of cylinder – bore/stroke | 4 | |
| Min. fuel consumption | 4 | |
| Rated speed | 2200 | |
| Transmission | Type | HAIYAN |
| Max. speed | 32KM | |
| Axle | Wheel base | 2031MM |
| Min. ground clearance | 280MM | |
| Hydraulic System | System working pressure | 16MPA |
| Boom lifting time | 6–11S | |
| Fuel tank capacity | 40L | |
| Brake System | Service brake | Oil brake |
| Parking brake | Handbrake | |
| Tyre | Tyre size | 860 |
Note
The above parameters may change due to design improvement. The parameters of the ordered machine may be different from the above information, without advance notification.
Our Advantages
MEGA telescopic wheel loaders are tested through demanding Chinese construction-site conditions, giving confidence in machine quality, efficiency and operating experience.
Our Services
Warranty: one year.
